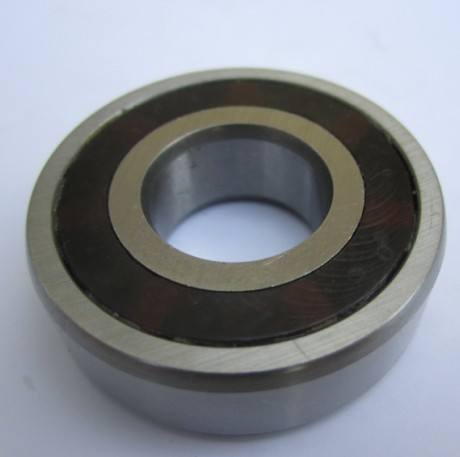

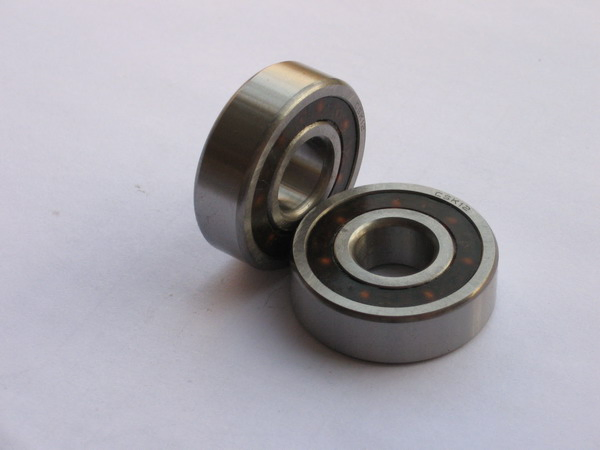

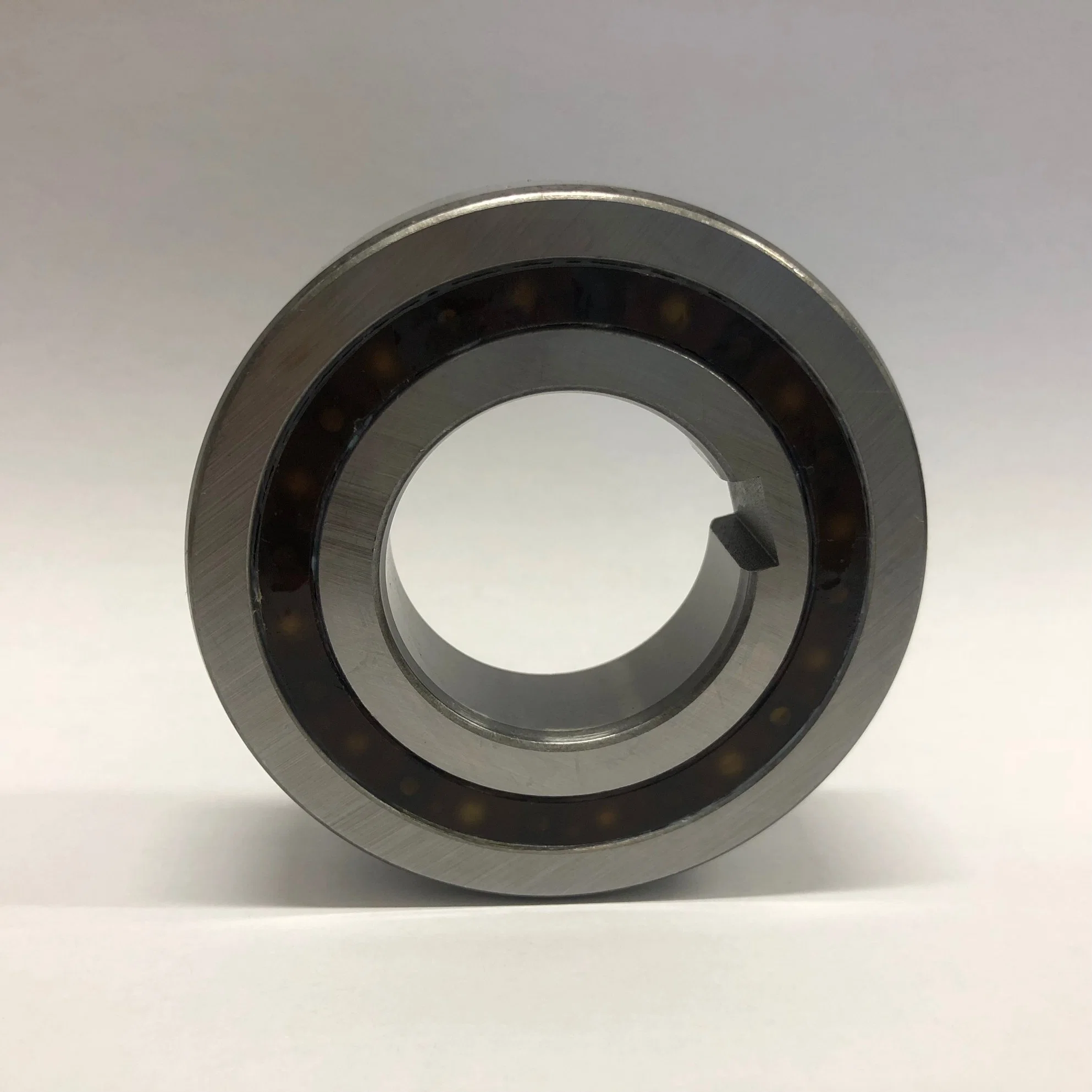

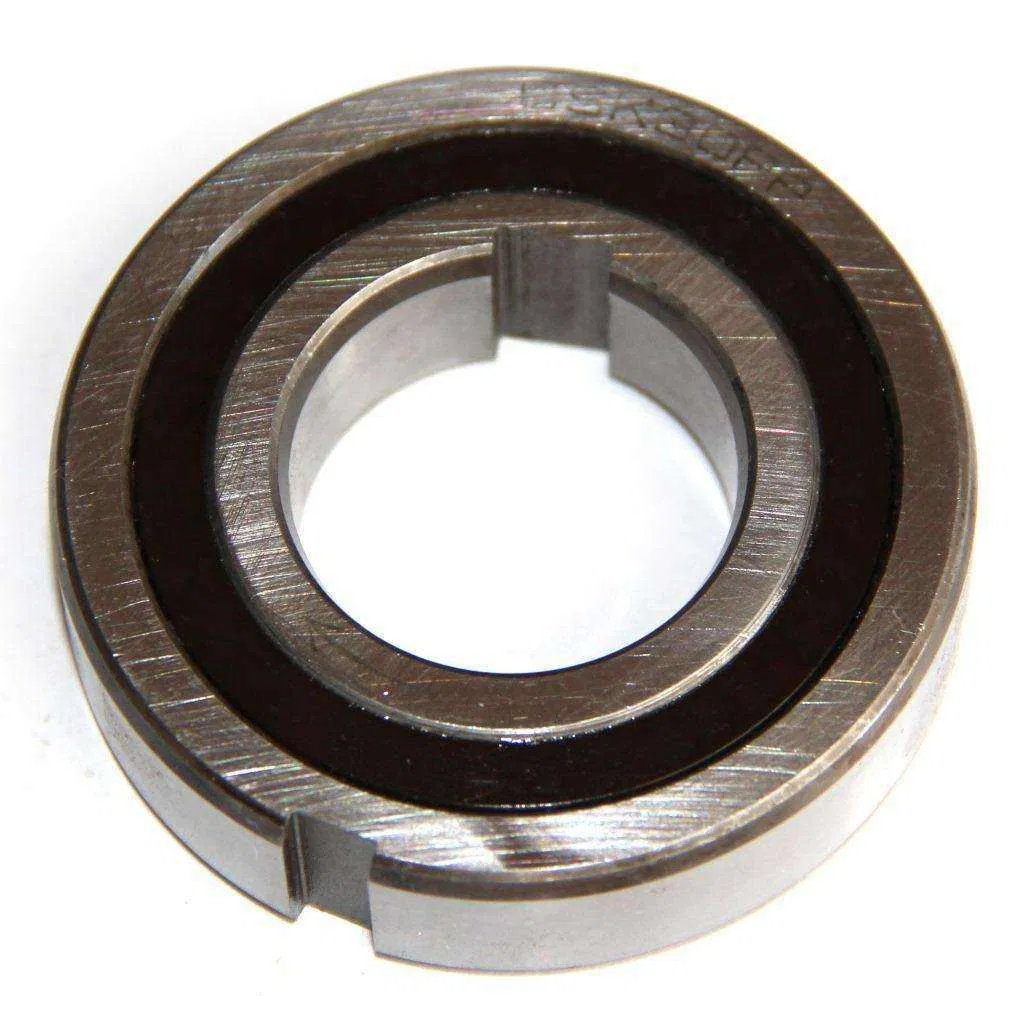

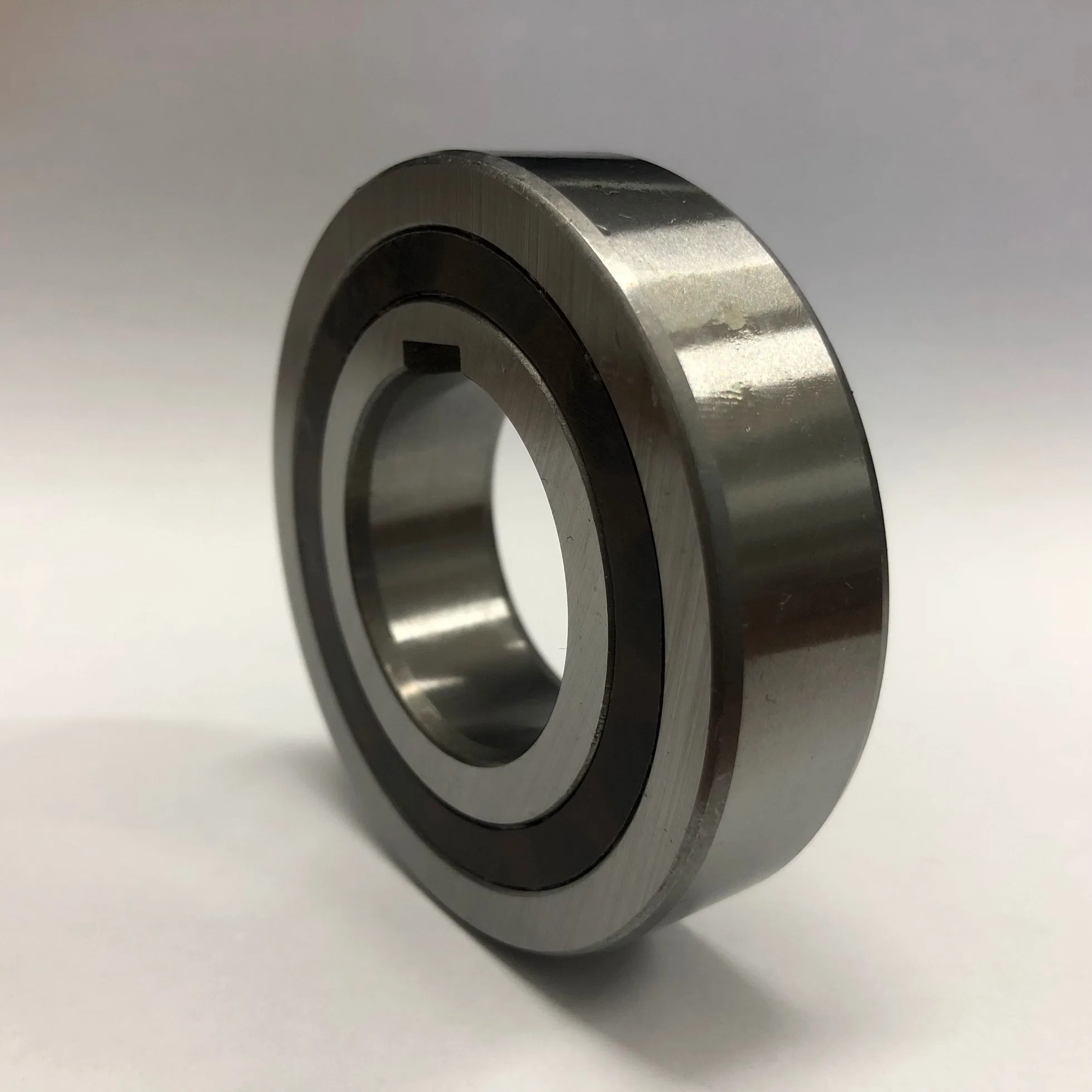

One Way Bearings are divided into open type and sealed type. The keyway can be machined on the inner ring and outer ring. The freewheel clutch is mainly used in such applications as speed conversion, reversal preventing, intermittent movement and etc. Working principle is to use friction generated by wedge, spring and such compression elements to transmit torque.
Technical parameters of one way clutch bearings:
| Type | Size | Bearing series | Bearing loads (kN) | Weight (kg) | Drag torque (Ncm) | |
|---|---|---|---|---|---|---|
| d [mm] | Dynamic (C) | Static (C0) | ||||
| CSK12P | 12 | 6201 | 6.1 | 2.77 | 0.04 | 0.7 |
| CSK15P | 15 | 6202 | 7.4 | 3.42 | 0.06 | 0.9 |
| CSK17P | 17 | 6203 | 7.9 | 3.8 | 0.07 | 1.1 |
| CSK20P | 20 | 6204 | 9.4 | 4.46 | 0.11 | 1.3 |
| CSK25P | 25 | 6205 | 10.7 | 5.46 | 0.14 | 2 |
| CSK30P | 30 | 6206 | 11.7 | 6.45 | 0.21 | 4.4 |
| CSK35P | 35 | 6207 | 12.6 | 7.28 | 0.3 | 5.8 |
| CSK40P | 40 | - | 15.54 | 12.25 | 0.5 | 7 |

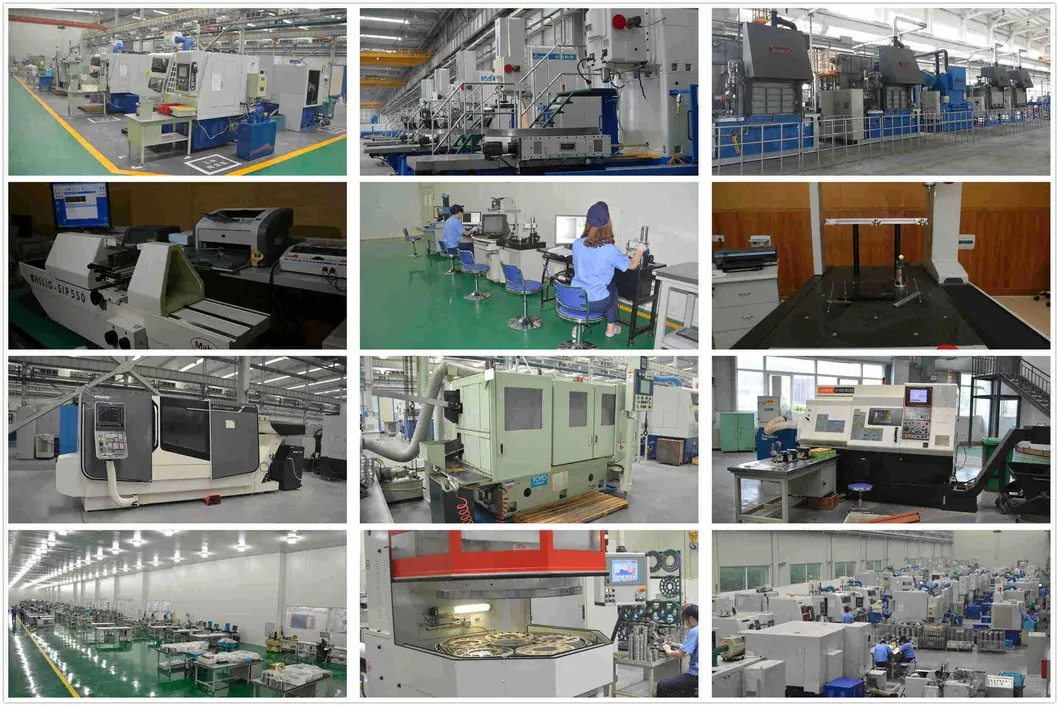

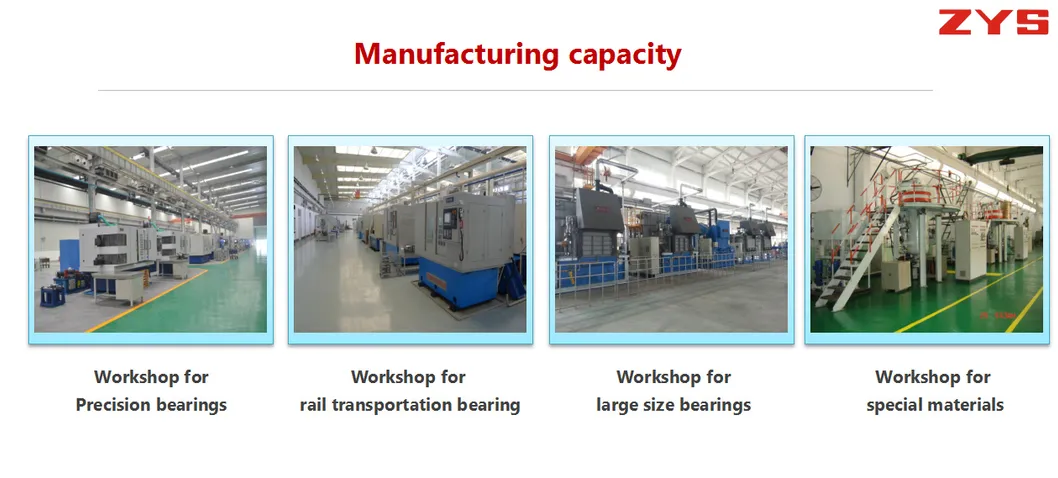

The manufacturing facility features an independent R&D center and a core technology system with independent intellectual property rights. The technical team and equipment scale are at the forefront of the bearing industry.
Systematic analysis and design of mechanics, kinematics, and dynamics properties using finite element analysis software.
Research in special bearing steel, heat treatment, and lubrication to ensure performance under complex conditions.

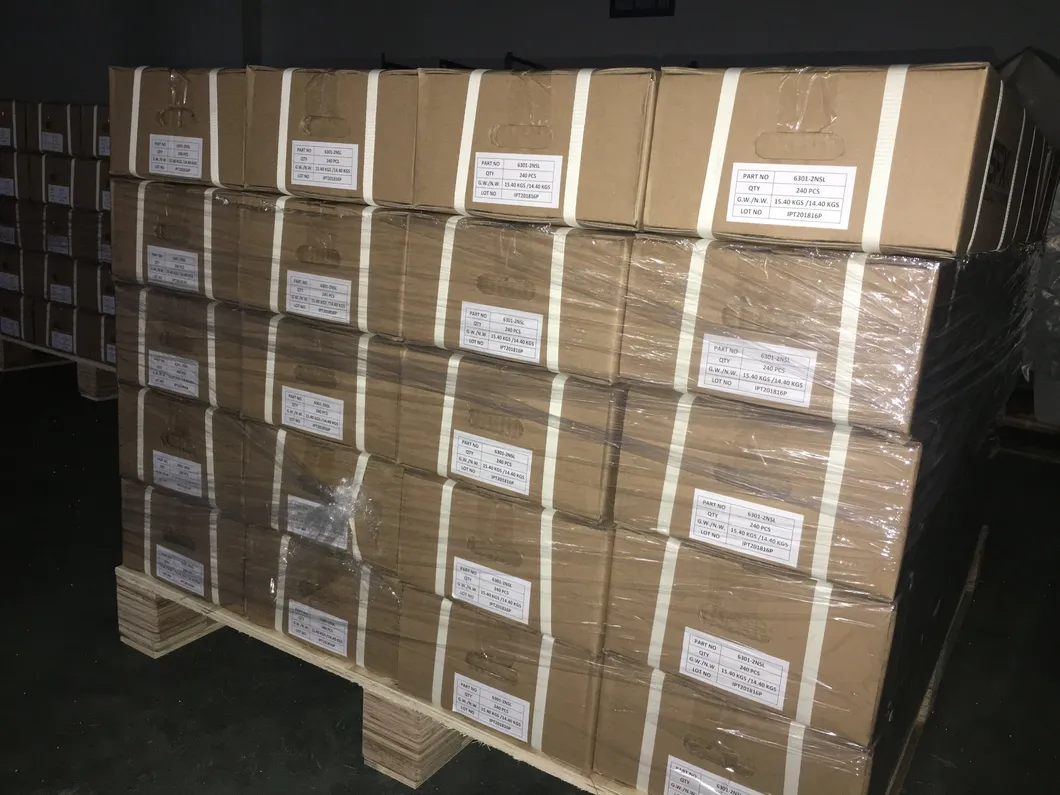

Industrial packing is standard (Plastic tube + carton + pallet). OEM customized packaging is available upon request.
