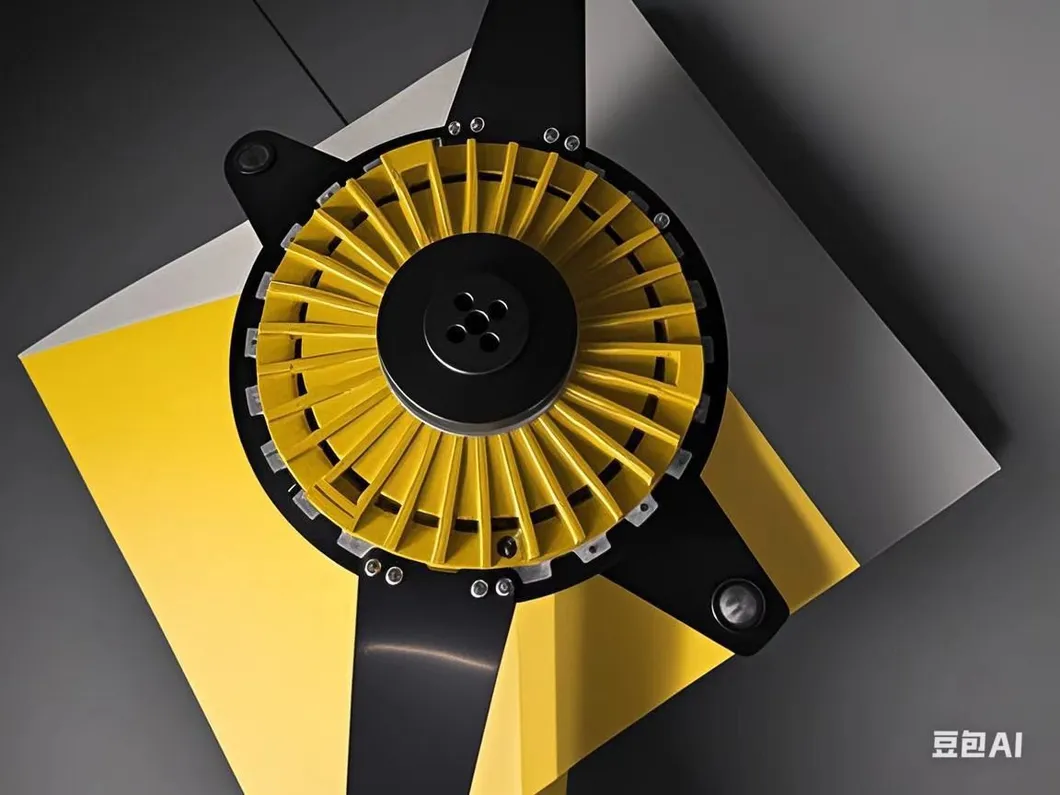

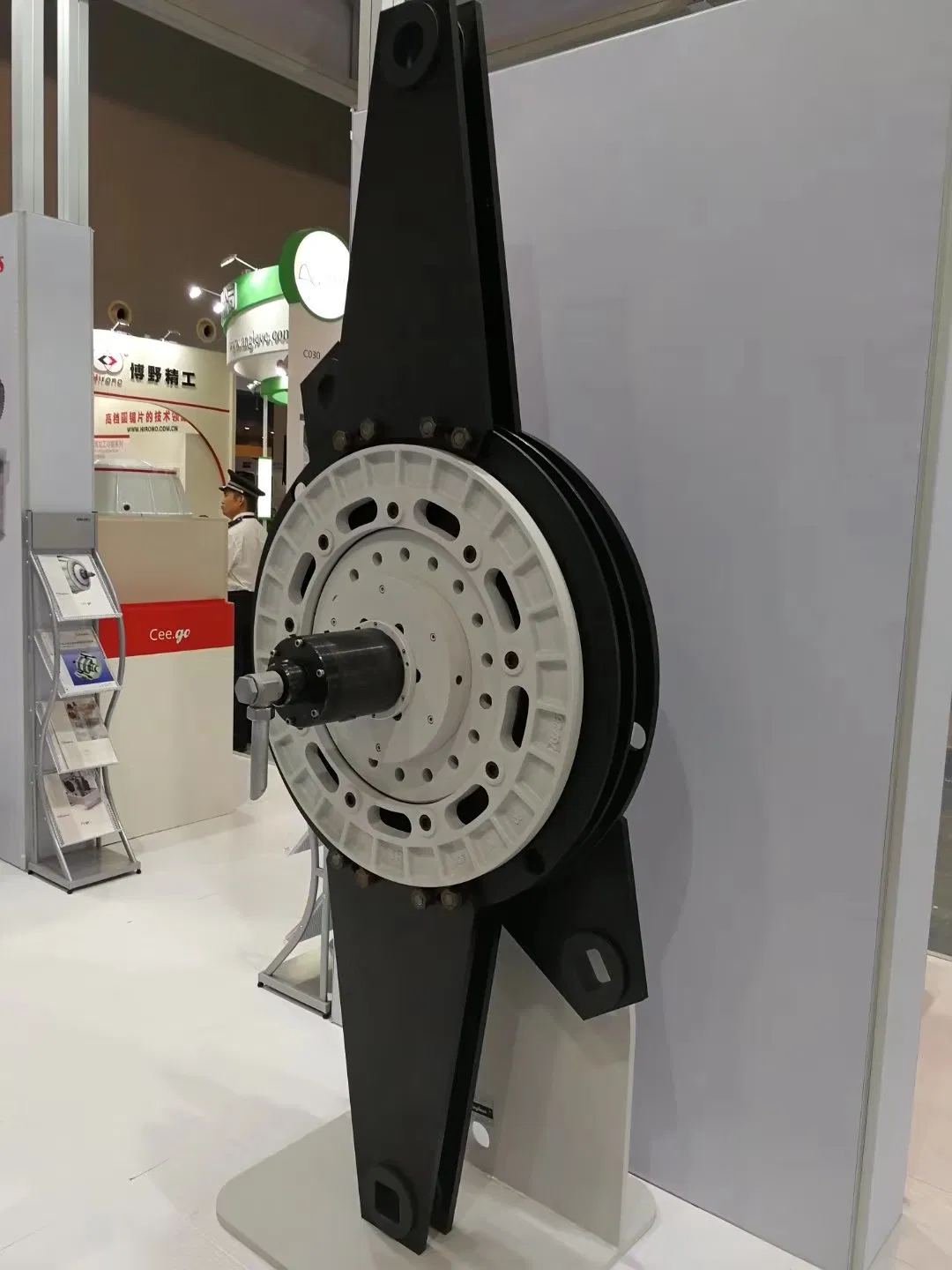

The KB Series Thin-Type Pneumatic Clutch Brake is a high-performance device that ingeniously combines a clutch and brake into an avant-garde spring-brake hybrid. Known for its exceptional adaptability and reliability, it is widely utilized in heavy-duty machinery. The KB500 model features a compact diameter of 497mm, specifically designed for 110-125 ton pneumatic power presses and 120 ton powder compacting presses.
| Model | Clutch Torque (Nm) | Brake Torque (Nm) | Max RPM | Air Pressure (bar) | Weight (kg) |
|---|---|---|---|---|---|
| KB25 | 260 | 180 | 3000 | 5-7 | 15 |
| KB50 | 520 | 360 | 3000 | 5-7 | 25 |
| KB100 | 1040 | 720 | 2500 | 5-7 | 40 |
| KB200 | 2080 | 1440 | 2500 | 5-7 | 65 |
| KB400 | 4160 | 2880 | 2000 | 5-7 | 95 |
| KB500 | 5200 | 3600 | 2000 | 5-7 | 110 |
| KB600 | 6240 | 4320 | 1800 | 5-7 | 125 |
| KB800 | 8320 | 5760 | 1800 | 5-7 | 145 |
| KB1200 | 12480 | 8640 | 1500 | 5-7 | 175 |

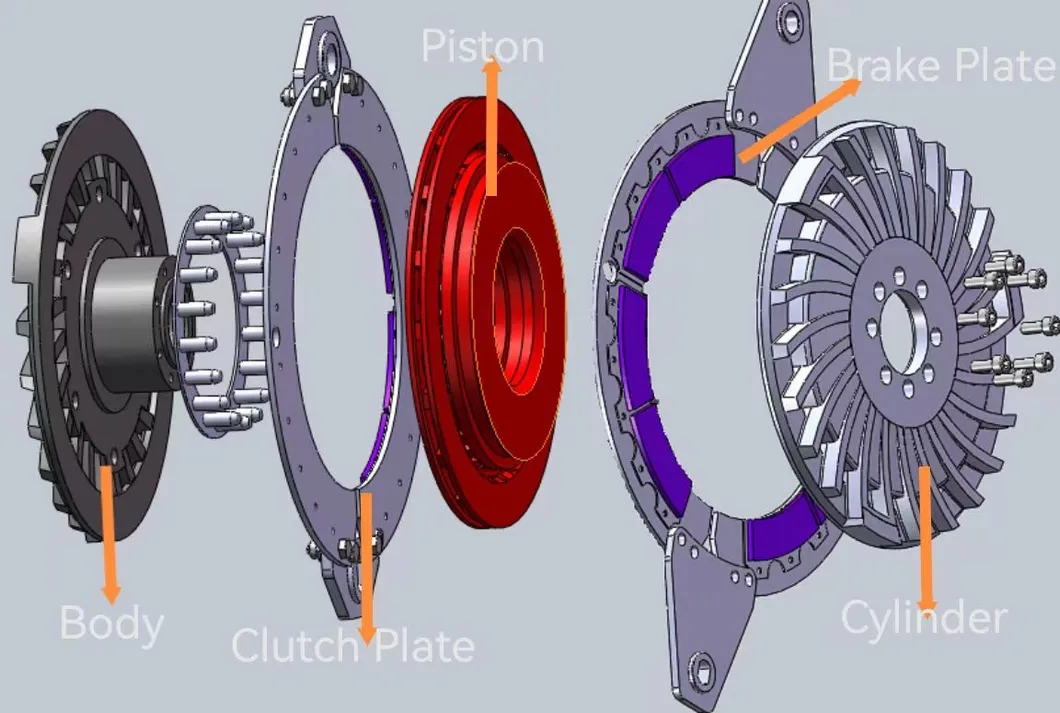

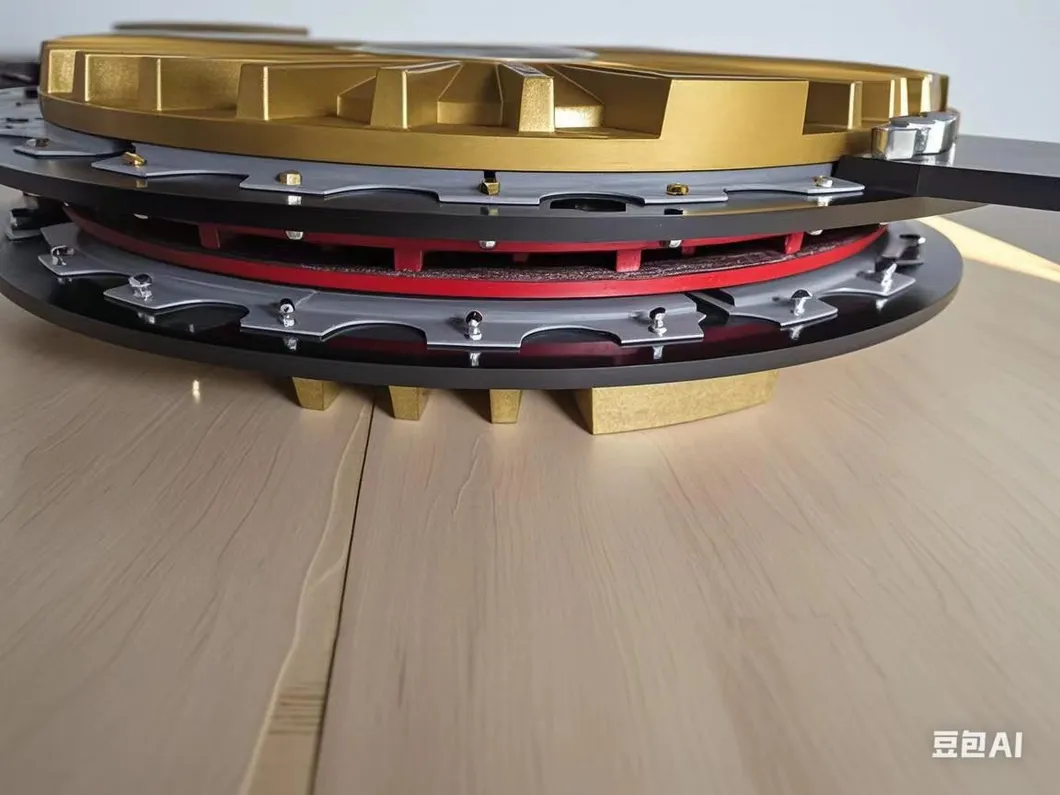

The system consists of a clutch body mounted on the main shaft, ear plates connected to the flywheel, and precision friction pads. Locking plates and pins ensure axial stability during high-speed rotation.
Ensure hole tolerance for pins is precisely H7. Alignment with the main shaft center must be parallel. Square pins should be used to compensate for thermal deformation. For axial intake, sealing caps are mandatory to prevent gas leakage.

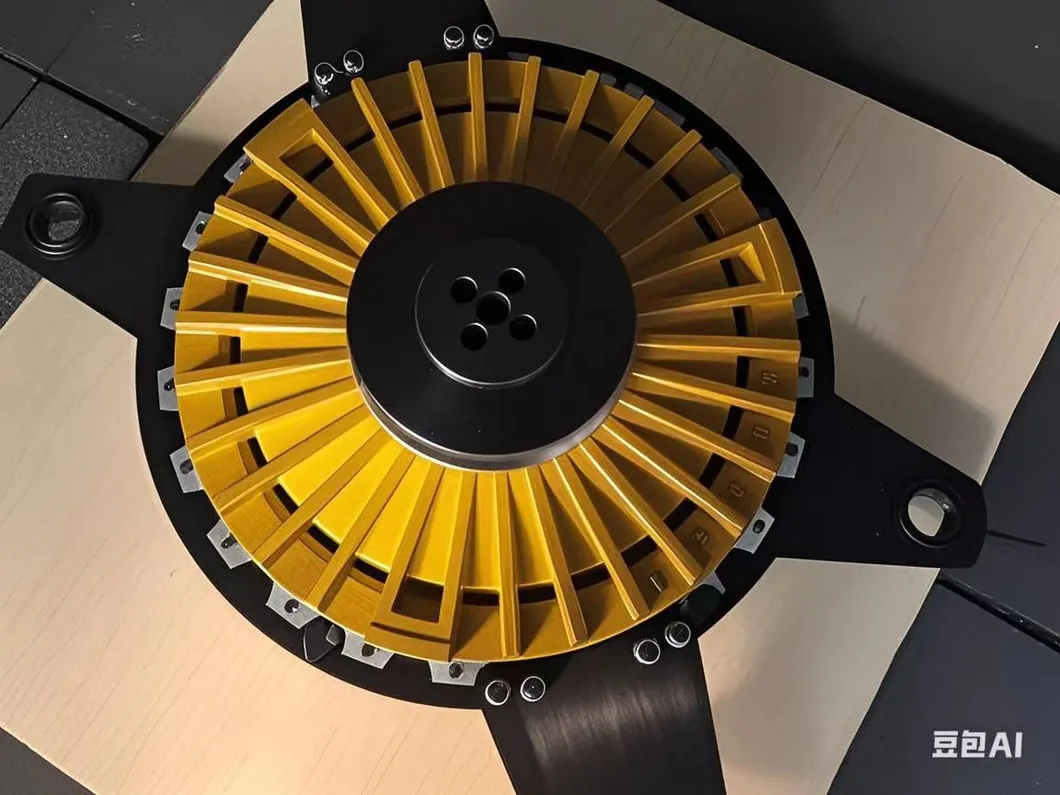

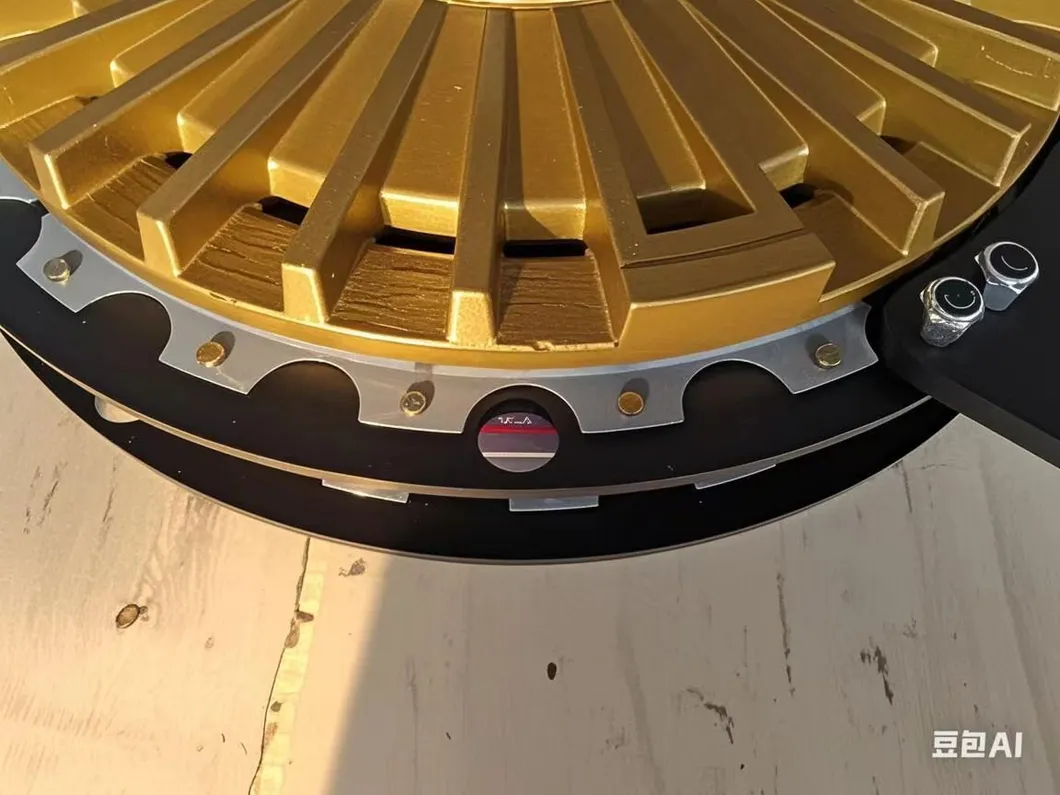

Monitor friction pad wear regularly. If wear exceeds 50% of original thickness, replace the pads promptly to prevent capacity loss. Replacement can be performed by loosening the ear plates without full disassembly.
