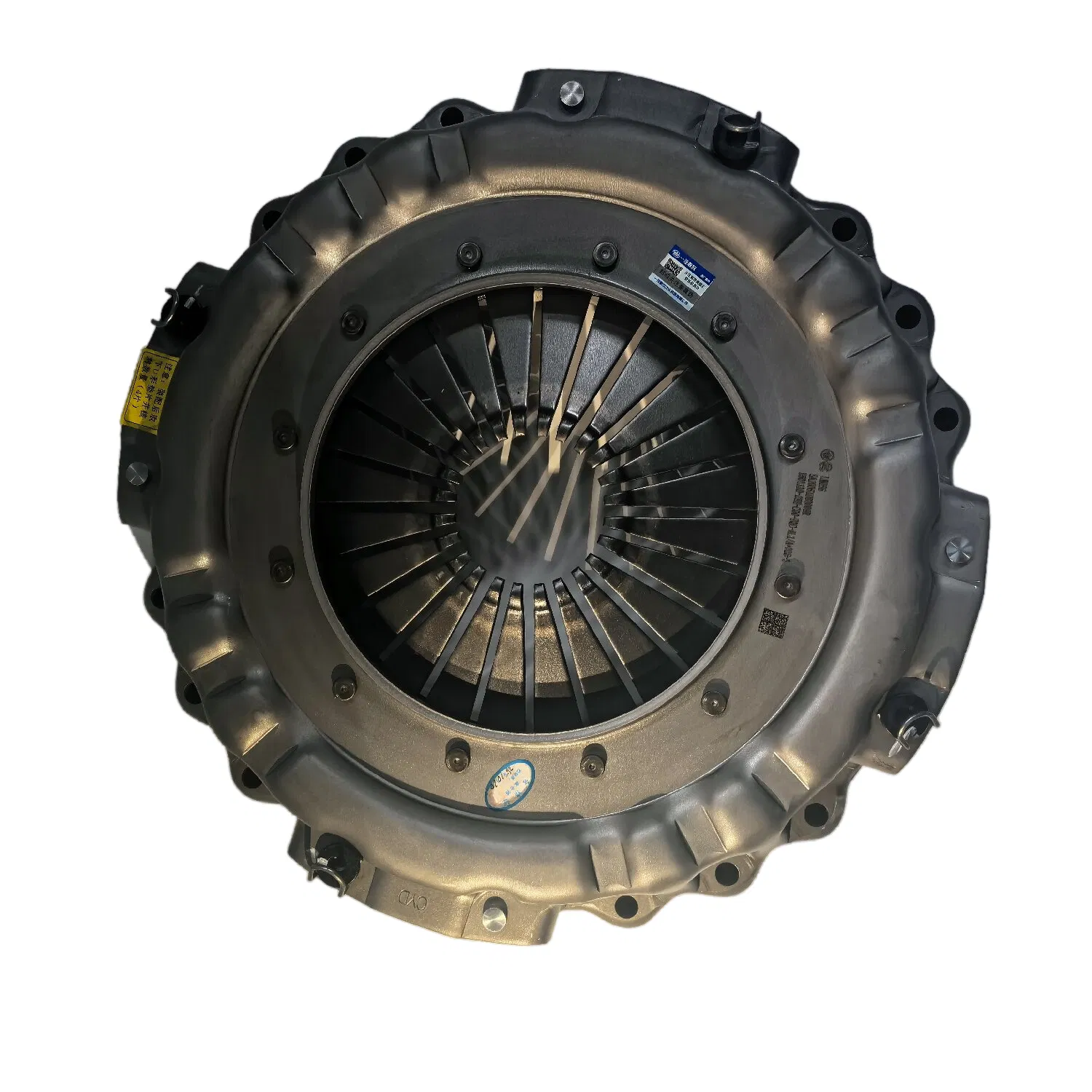

Long-Life 395mm Clutch Cover Assembly: 2m-Cycle Diaphragm, Ablation-Resistant, Low Release Force. Jiafang 1601210-Dg44/a
Long-Life 395mm Clutch Cover Assembly: 2m-Cycle Diaphragm, Ablation-Resistant, Low Release Force. Jiafang 1601210-Dg44/a
Long-Life 395mm Clutch Cover Assembly: 2m-Cycle Diaphragm, Ablation-Resistant, Low Release Force. Jiafang 1601210-Dg44/a
Long-Life 395mm Clutch Cover Assembly: 2m-Cycle Diaphragm, Ablation-Resistant, Low Release Force. Jiafang 1601210-Dg44/a
Long-Life 395mm Clutch Cover Assembly: 2m-Cycle Diaphragm, Ablation-Resistant, Low Release Force. Jiafang 1601210-Dg44/a
1 / 5
Long-Life 395mm Clutch Cover Assembly: 2m-Cycle Diaphragm, Ablation-Resistant, Low Release Force. Jiafang 1601210-Dg44/a
Long-Life 395mm Clutch Cover Assembly: 2m-Cycle Diaphragm, Ablation-Resistant, Low Release Force. Jiafang 1601210-Dg44/a
Long-Life 395mm Clutch Cover Assembly: 2m-Cycle Diaphragm, Ablation-Resistant, Low Release Force. Jiafang 1601210-Dg44/a
Long-Life 395mm Clutch Cover Assembly: 2m-Cycle Diaphragm, Ablation-Resistant, Low Release Force. Jiafang 1601210-Dg44/a
Long-Life 395mm Clutch Cover Assembly: 2m-Cycle Diaphragm, Ablation-Resistant, Low Release Force. Jiafang 1601210-Dg44/a

Long-Life 395mm Clutch Cover Assembly: 2m-Cycle Diaphragm, Ablation-Resistant, Low Release Force. Jiafang 1601210-Dg44/a

Customization: Available
After-sales Service: Support
Part: Clutch Cover
Send Inquiry

Product Description

Basic Info.
Material
Steel
Classification
Magnetic Powder Clutch
Certification
ISO/TS16949:2002
Usage
Heavy Duty Trucks
Product Name
Clutch Cover Assembly
Application
Heavy Duty Trucks & Tractors
Clutch Component
Clutch Cover
Release Force
4500n Max
Brand
FAW Jiefang
Clutch Cover Assembly Banner
395mm Clutch Cover
Product Description
CLUTCH COVER ASSEMBLY
Engineered for high-performance, this clutch assembly matches engines up to 1000 Nm, ensuring robust power. It features a precise clamping force of 18100±1200 N and low release force (max 4500N) for smooth operation. Designed for durability, it offers a 3mm wear allowance, operating efficiently within an 11-13mm release stroke. Meticulously sized for perfect fit: φ435mm spigot diameter, max outer φ440mm, and pressure plate φ228mm (ID) x φ395mm (OD), ensuring seamless integration into medium-duty commercial vehicle systems.
Main Applications
  • FAW Jiefang J6 / JH6 / J6P Series Trucks: OE-quality for flagship heavy trucks, ensuring perfect fit and optimal performance.
  • Long-Haul Freight & Logistics: Ideal for long-distance trucking with heavy payloads where reliability is critical.
  • Construction & Mining Haulage: Built to handle extreme torque demands of dump trucks and mining vehicles.
  • Heavy Cargo & Bulk Transport: For trucks transporting steel, timber, and other heavy materials.
Technical Parameters
TECHNICAL SPECIFICATIONS
Product NameClutch Cover Assembly
Matching Engine Torque1000Nm
Clamping Force(18100±1200)N
Release Force4500N max
Release Finger Working Diameterφ78mm
Installation Height70mm
Release Stroke(11-13)mm
Wear Amount3mm
Spigot Diameterφ435mm
Pressure Plate Inner Diameterφ395mm
Pressure Plate Outer Diameterφ228mm
Maximum Outer Diameterφ440mm
Detailed Photos

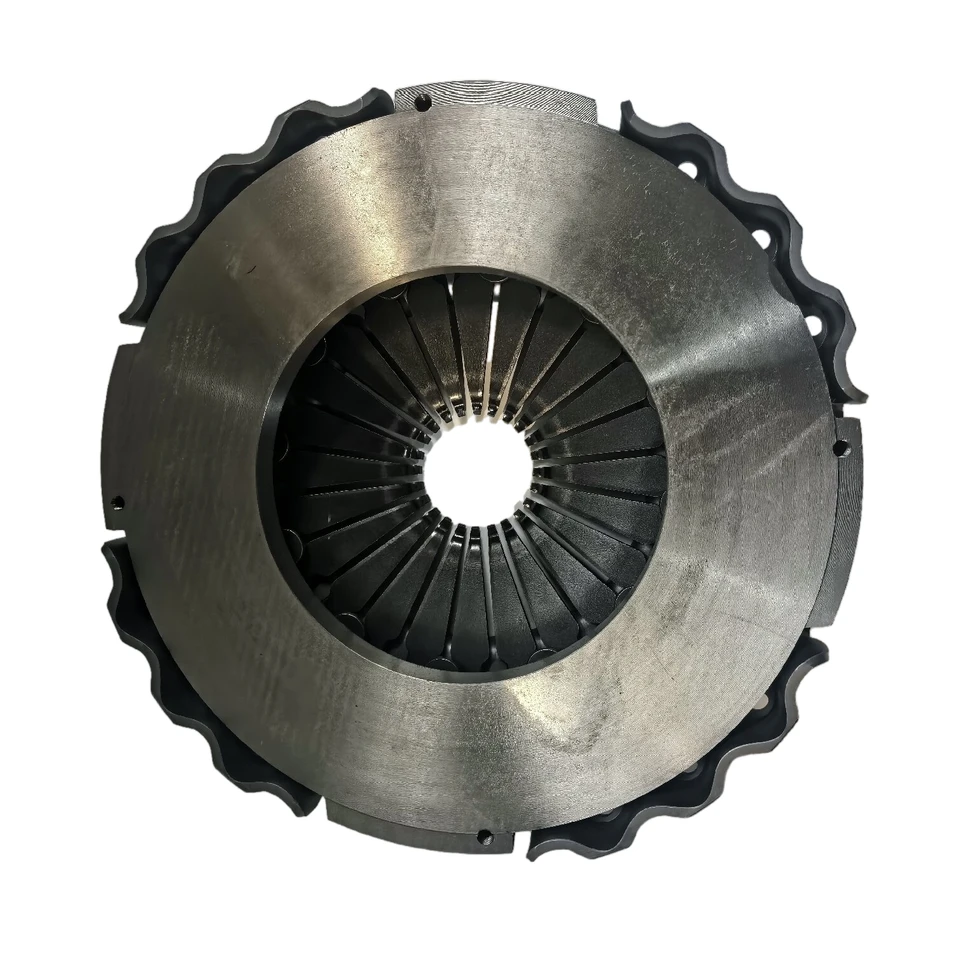

Push type clutch view 1

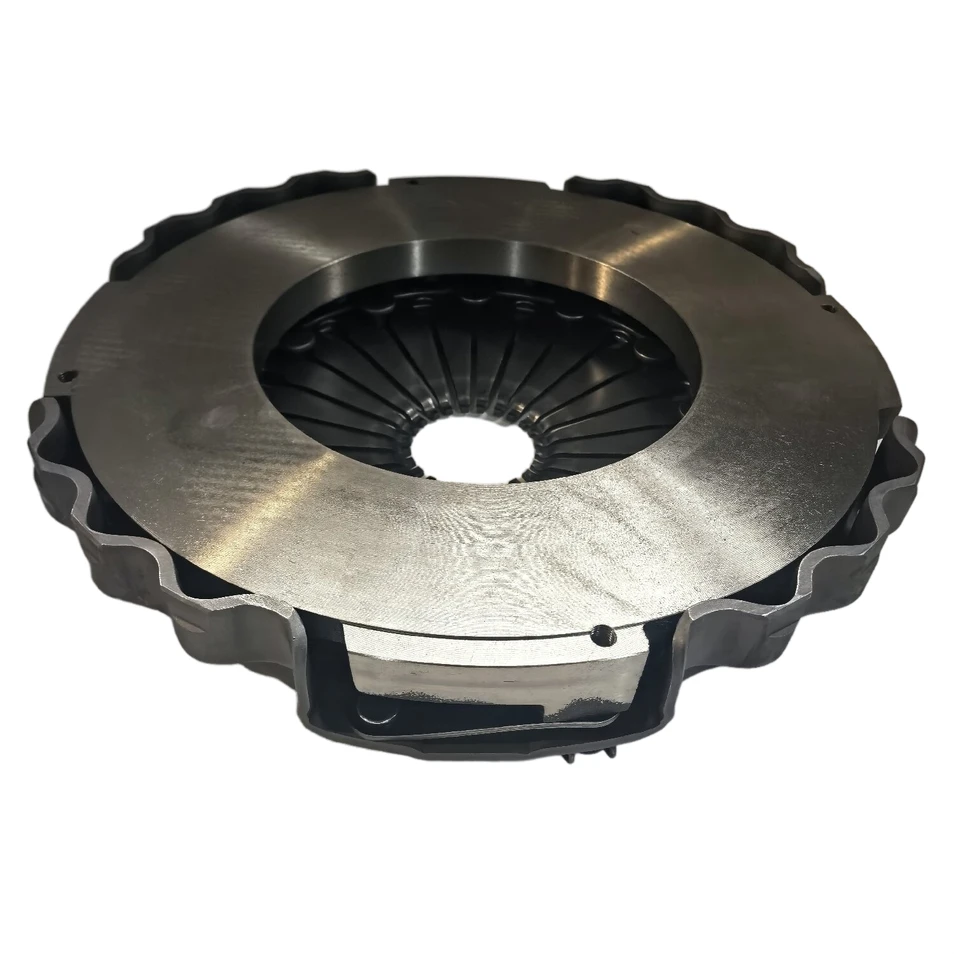

Push type clutch view 2
Technical detail 1

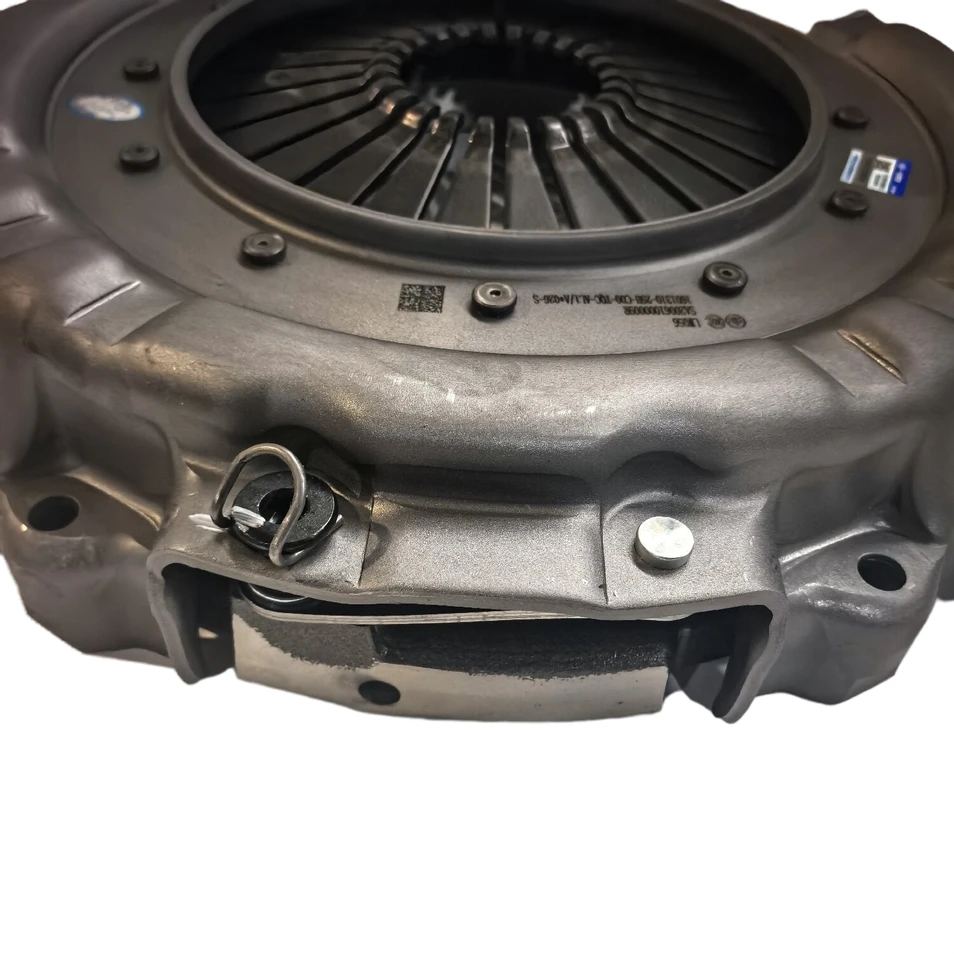

Technical detail 2

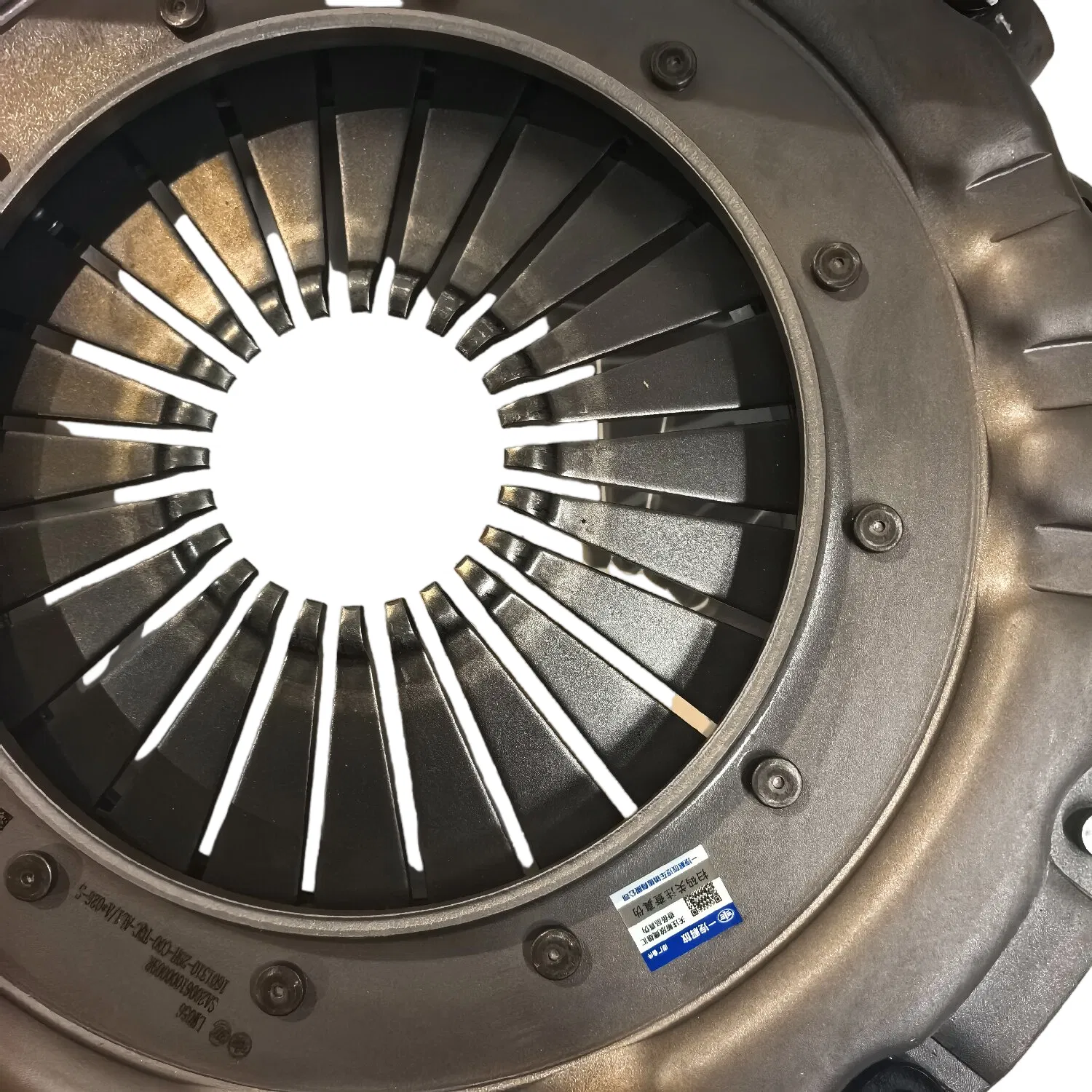

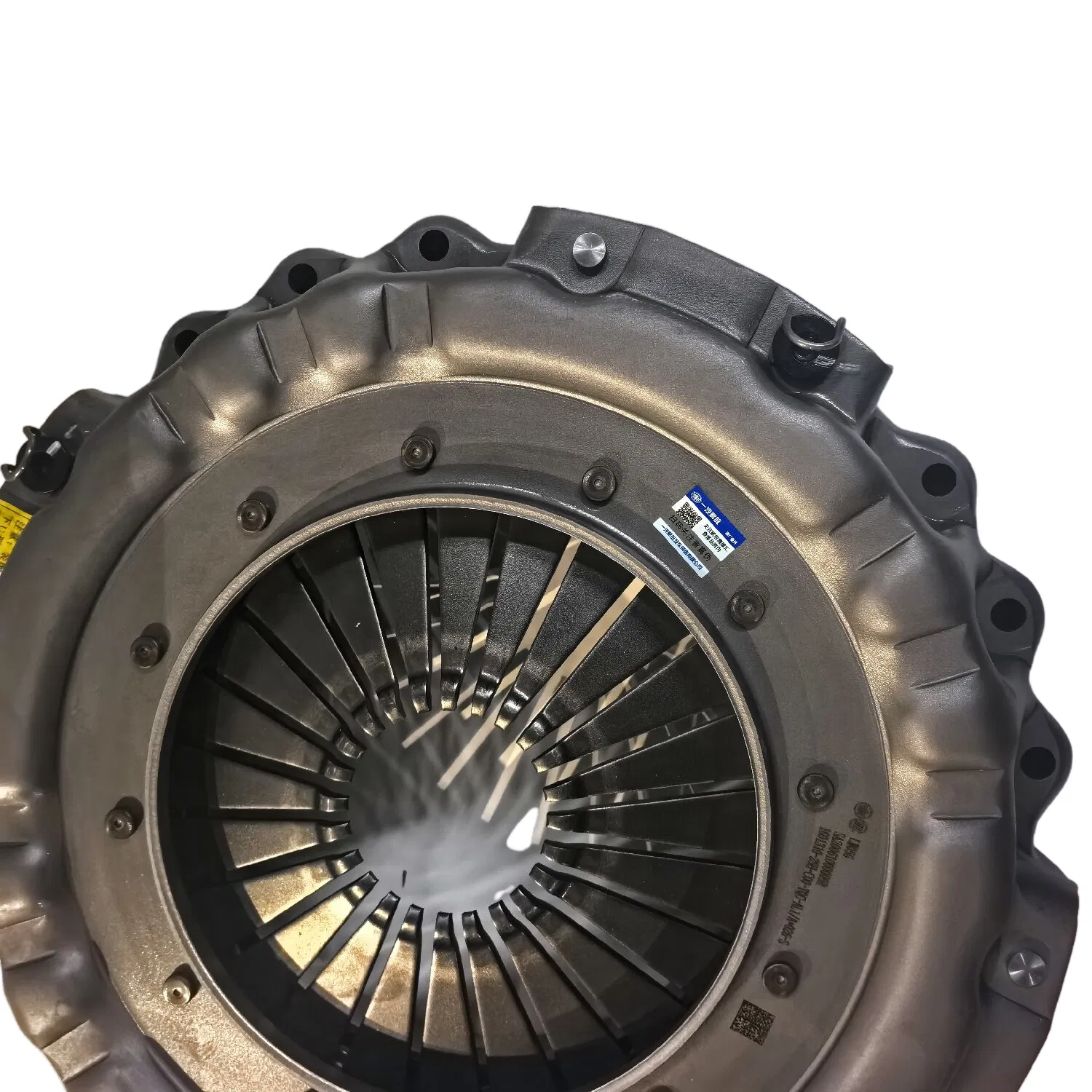

Push Type Clutch Features:

Long lifespan design maximizes classic push type diaphragm spring clutch, reducing lift loss from wear. Diaphragm spring is made from 50CrV4/51CrV4 material, capable of withstanding 2 million high-temp dynamic disengagement tests.

Pressure Plate: HT250 cast iron with heat dissipation rib structure, offering greater heat capacity and reducing ablation risk.

Manufacturing & R&D Capability

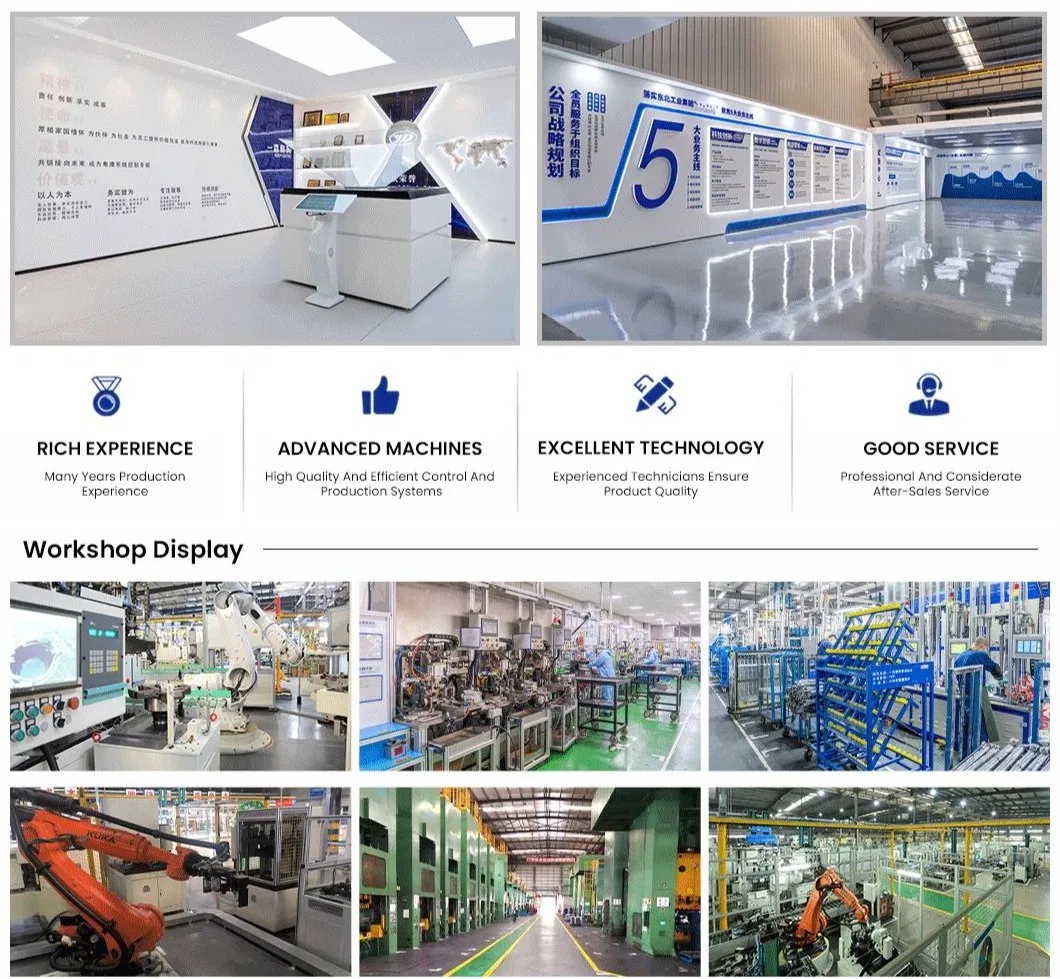

Production line
R&D Lab
Testing equipment
Specializing in clutch and hydraulic tilting systems for commercial vehicles, utilizing a national tech center and postdoctoral workstation. Expertise includes 3D design, PLM, MES data control, and advanced strain simulation (ANSYS, ABAQUS).

Test Capability: Premier CNAS national lab with 106 testing equipment sets. Expertise in vehicle pedal comfort and NVH analysis.
Equipment 1
Equipment 2
Equipment 3
Frequently Asked Questions
Q1: Are you a trading company or a manufacturer? A: We are a manufacturer with our own factory.
Q2: Can you produce non-standard or custom products? A: Yes, we manufacture based on your samples or technical drawings.
Q3: How to place an order? A: Contact us via email/phone for a quote, then confirm with a PO.
Q4: What if I don't know the part number? A: Send us the truck or chassis model, or part photos and OE No. We will identify the correct parts for you.
Q5: What is your delivery time? A: Typically, delivery is 7 days if in stock, 15-45 days otherwise, depending on requirements and quantity.
Q6: What are your delivery methods? A: We offer express, sea, air, and rail transport. Freight charges are negotiable.
