1 Overview
Model NO.
Al16
Type
Auto Fasteners
Material
Aluminum
Muffler Type
Clutch Plate Components
Deck
Single
Quality
High - Grade
Durability
Long - Lasting
Design
Ergonomic
Material - Feature
Corrosion - Resistant
Manufacturing Process
Precision - Made
Heat Dissipation
Efficient
Vibration Resistance
Stable
Compatibility
Universal
Assembly Ease
Effortless
Transport Package
Shockproof Foam + Wooden Case
Production Capacity
50000PCS/Year
2 Product Description

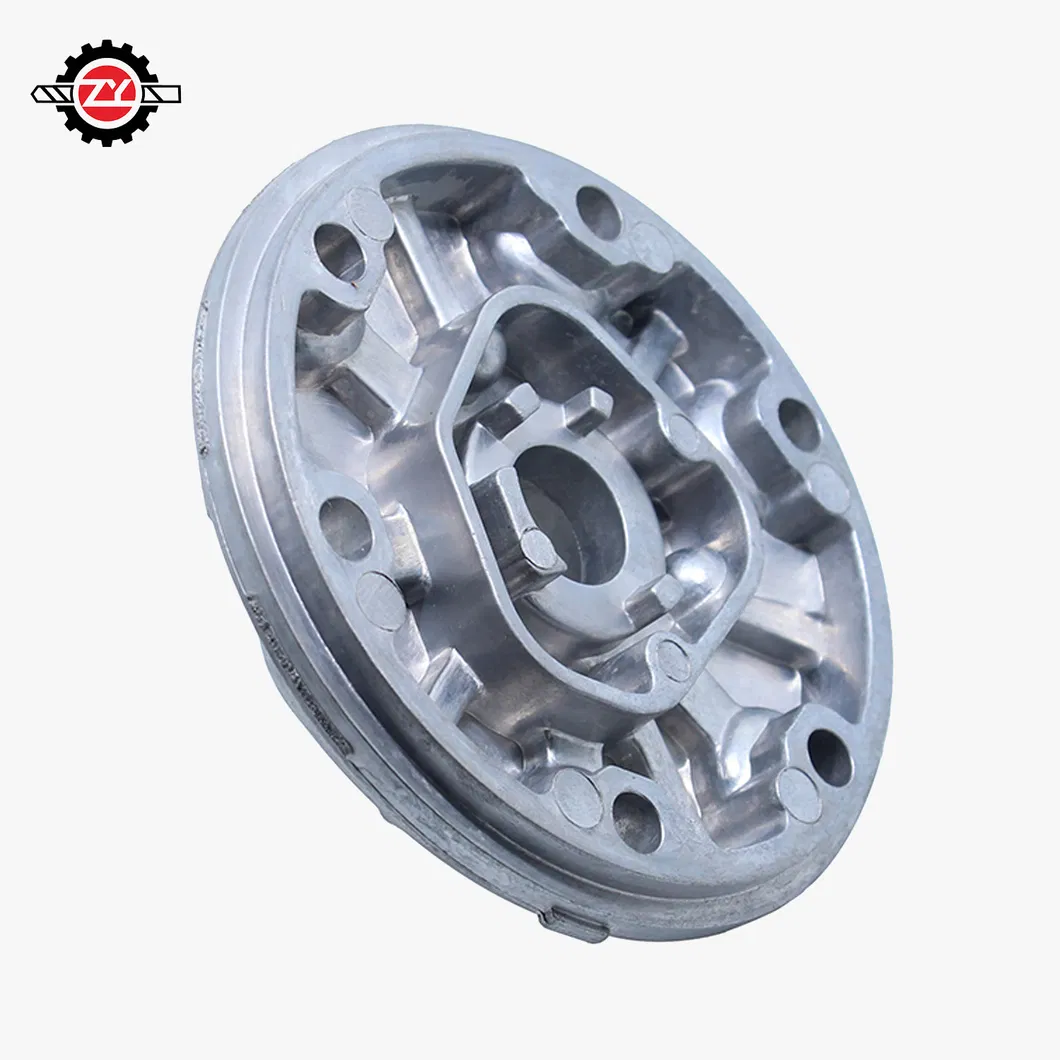

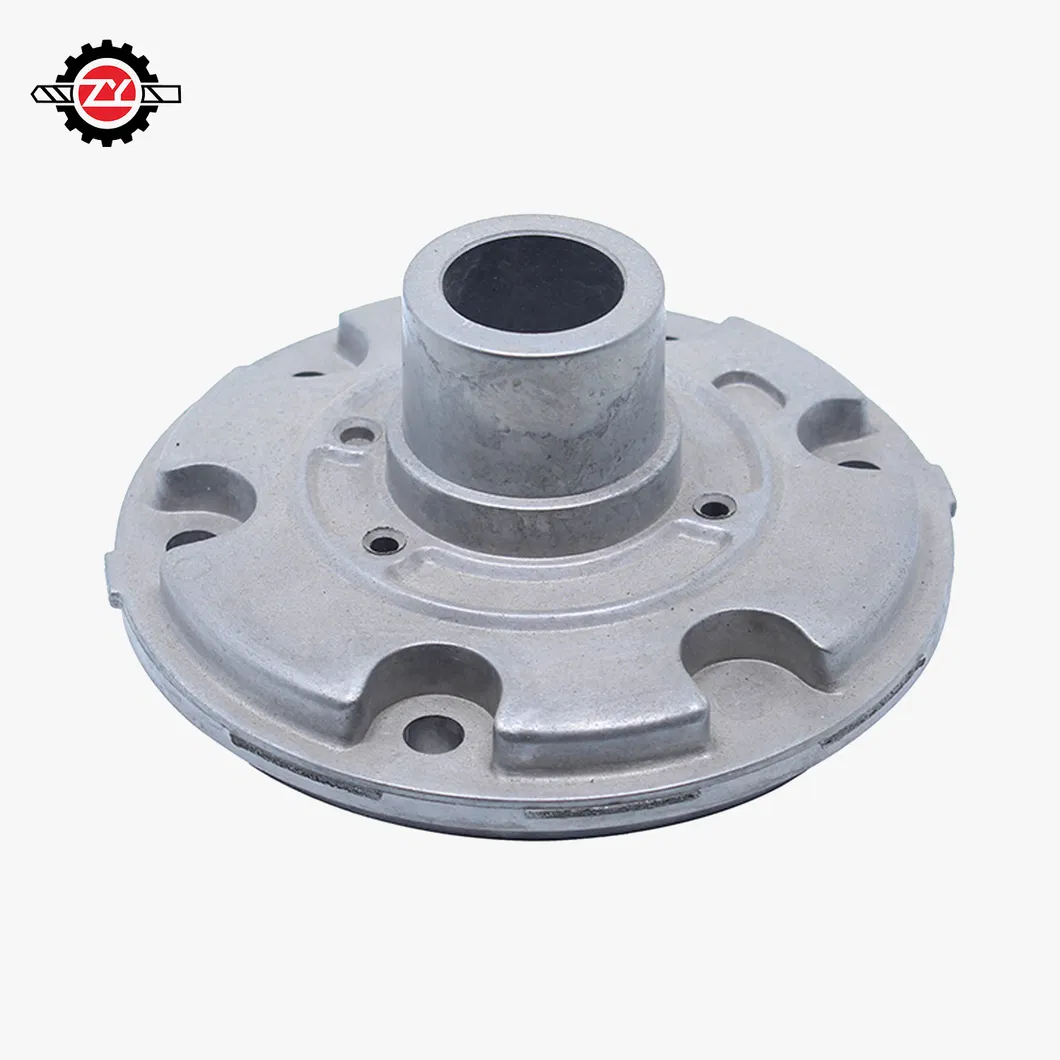

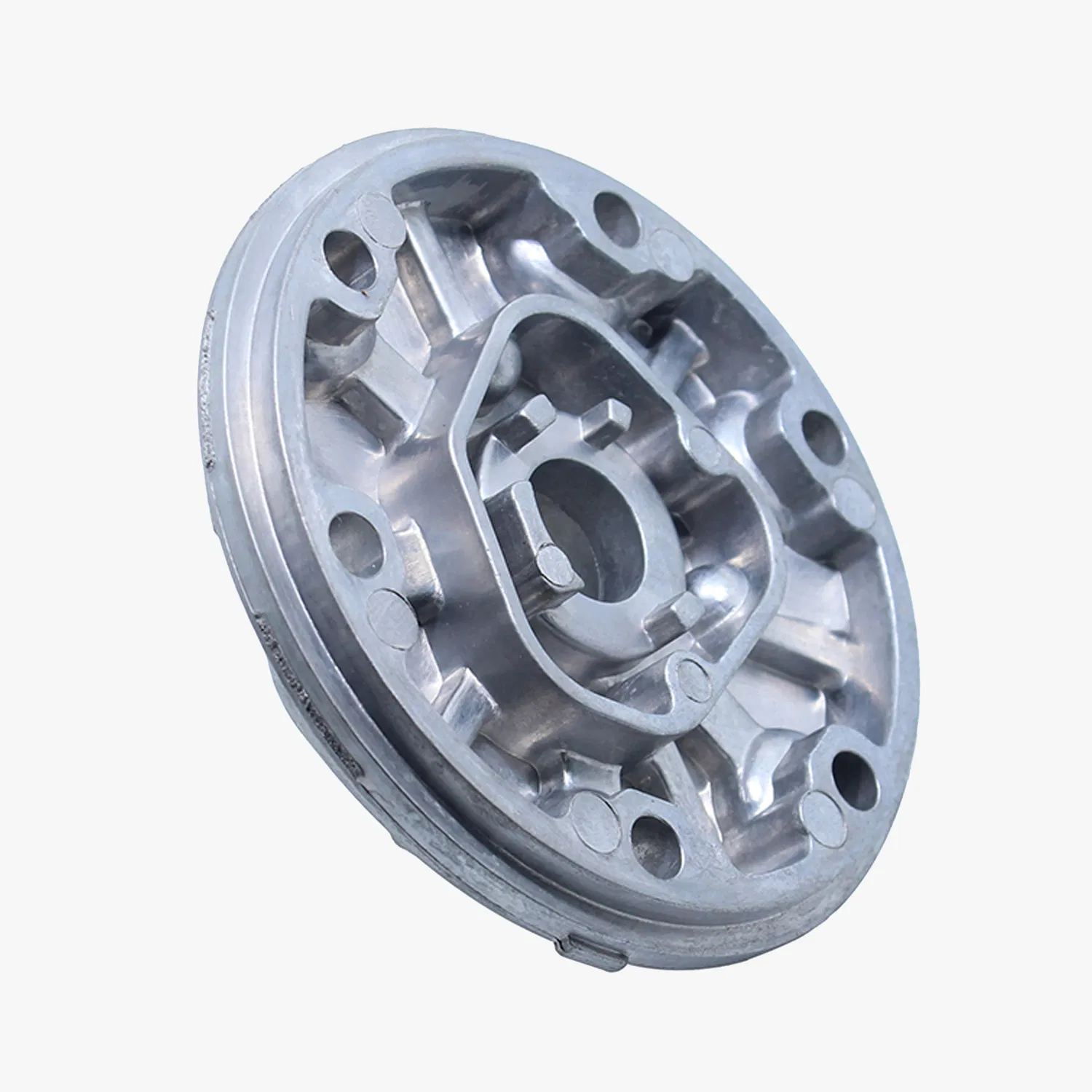

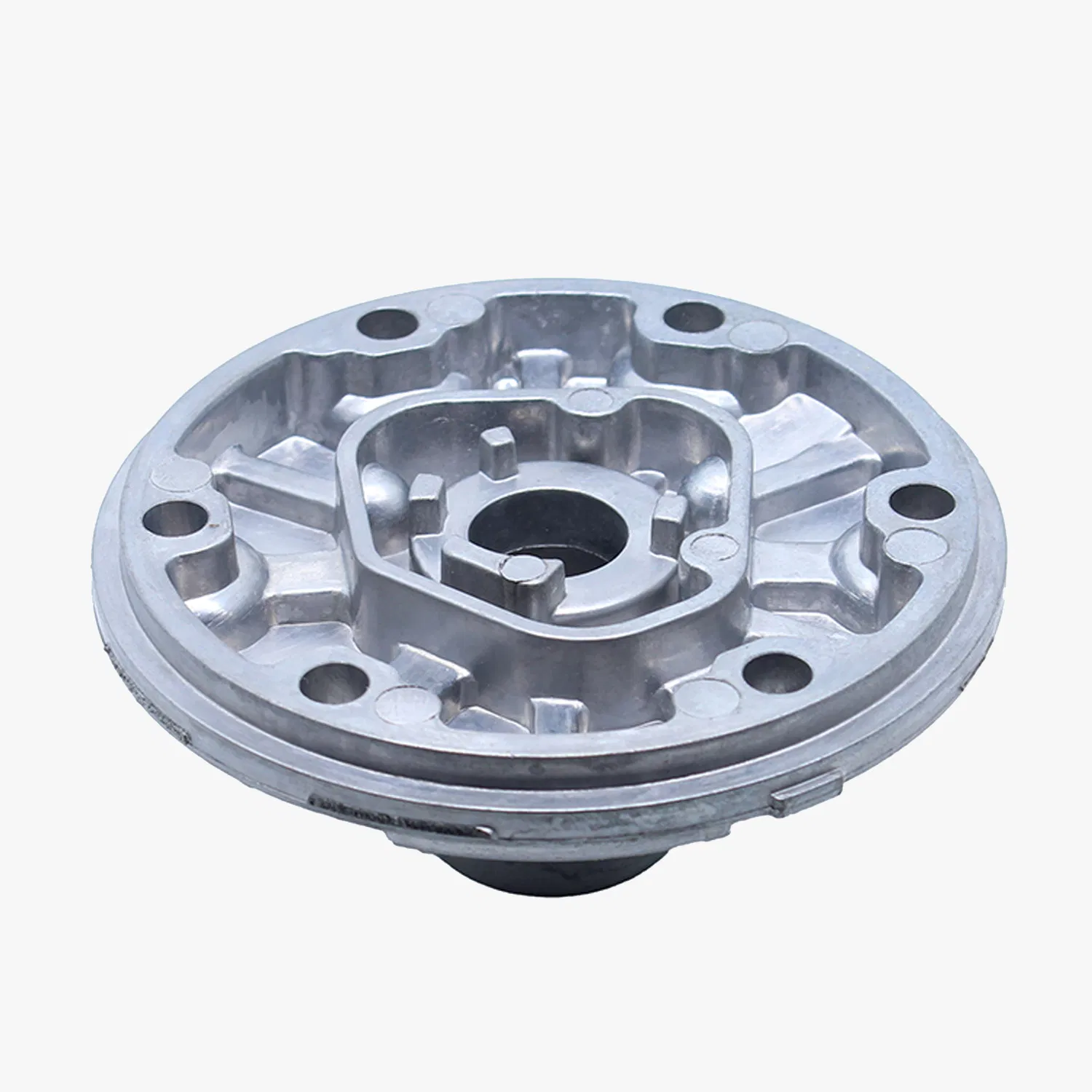

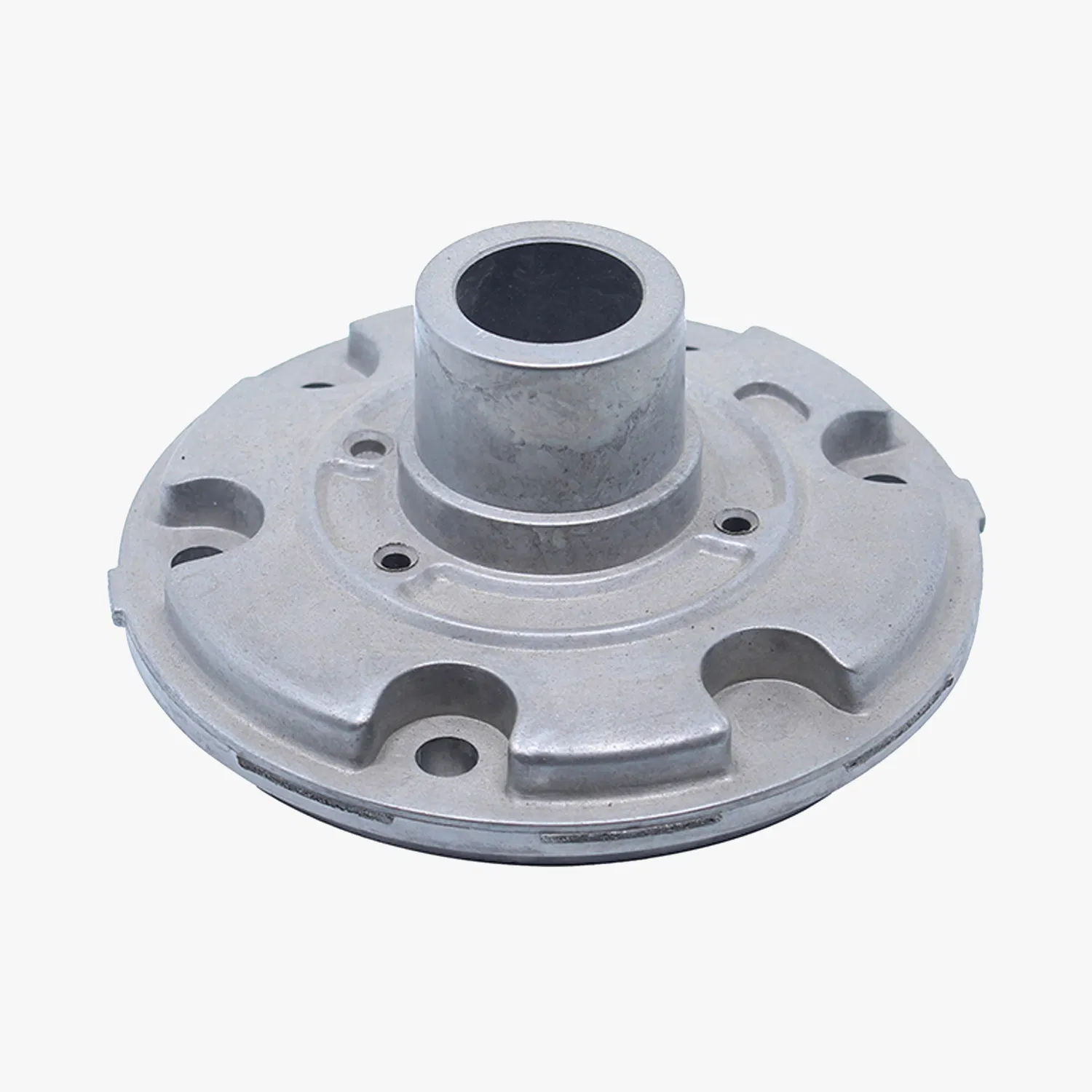

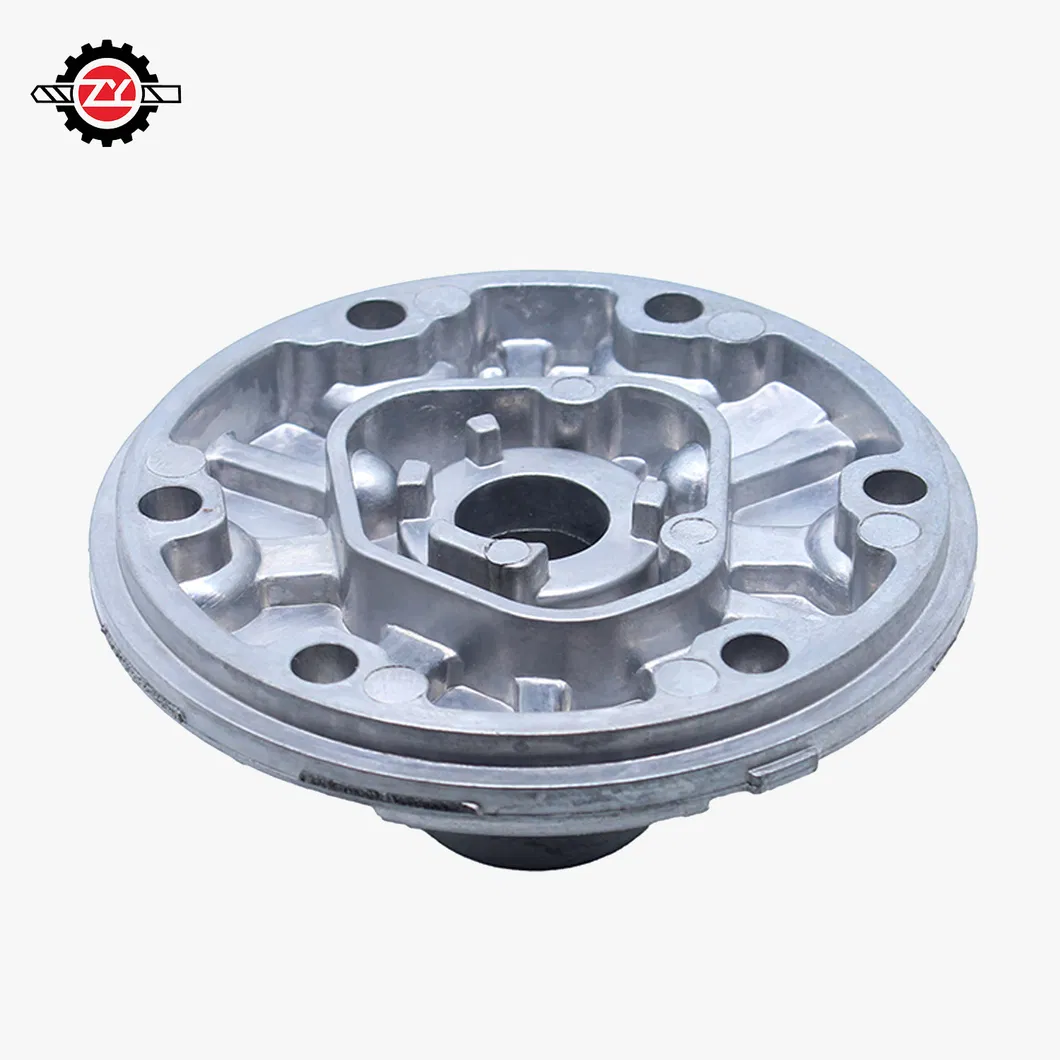

This precision - cast aluminum alloy clutch plate is formed by high - pressure die - casting of high - strength AlSi7Mg alloy. It has a disc - shaped structure with a diameter of Φ120mm and a thickness of 20mm. The center integrates a cylindrical hole of Φ45mm and six evenly - distributed holes of Φ8mm. The micro - arc oxidation (MAO) coating on the surface provides a 15μm wear - resistant layer. CNC finishing achieves a tolerance of ±0.02mm. It is compatible with ISO 5211 flange interfaces and is applicable to automotive transmissions, industrial heavy - duty equipment, and motorcycle power transmission systems. It can withstand high temperatures of 150ºC and has passed the ASTM B117 salt spray test.
✓
Cross - industry Adaptability: Applicable to four major fields including automobiles, industrial machinery, motorcycles/electric vehicles, and precision machining.
✓
Long - term Reliability: The MAO coating and passing the salt spray test reduce maintenance costs by 60%.
✓
Efficient Heat Dissipation: The heat - dissipation groove design increases the heat conduction efficiency by 30%.
✓
Installation Efficiency: The standardized hole position design saves 70% of the assembly time.
? Frequently Asked Questions
Q1. What customization services do you offer?
We offer custom machining based on your drawings or samples, including material selection, size adjustments, shape design, surface treatments (anodizing, plating, painting, etc.), and laser engraving.
Q2. Can you manufacture parts based on my design drawings?
Yes, we can manufacture parts according to your CAD drawings or 3D models. Please provide files in STEP, IGES, DWG, or PDF format.
Q3. What material options do you offer?
We provide a wide range of materials, including aluminum alloys (6061, 7075, etc.), stainless steel, carbon steel, brass, copper, titanium alloys, and plastics like POM or nylon.
Q4. What is your machining accuracy?
Our CNC machining accuracy can reach ±0.01mm. Specific tolerance requirements can be confirmed before production according to your needs.
Q5. How do you ensure product quality?
We implement strict quality control measures, including raw material inspection, in-process monitoring, final dimension inspection, and surface finish checks.
Q6. How do you ship orders?
We offer multiple shipping options, including DHL, FedEx, UPS, sea freight, and air freight, with worldwide delivery available to meet your schedule.
