Overview
Certification:
ISO9001
Classification:
Disc
Specification:
600x600
Origin:
China
HS Code:
6813890000
Capacity:
30t/Month
Main Market:
Global Markets (Americas, Europe, Asia, Middle East)
Transport:
Carton & Pallet
⚙️
Product Description

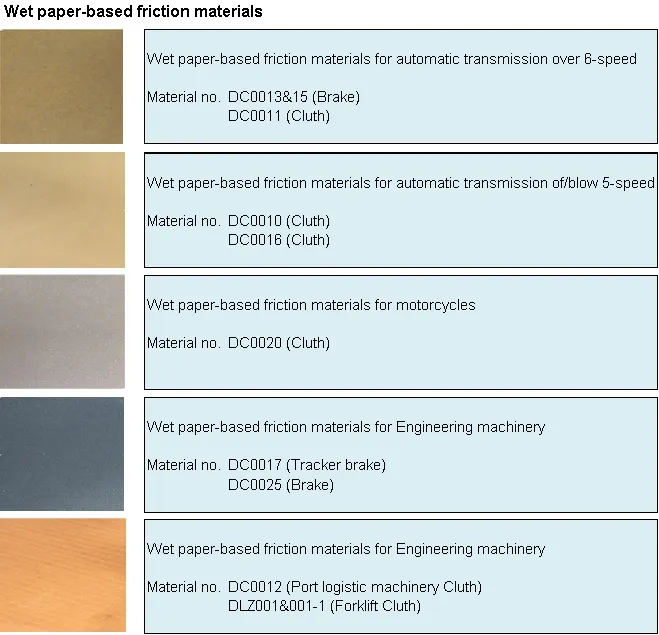

Our wet paper-based friction materials are engineered for high-performance applications. Comprising 45-55% fiber (aramid, carbon, and composite reinforced fibers) and 20% functional raw materials, these discs provide exceptional durability and friction stability.
📊
Product Parameters
| Material Component |
Details |
| Primary Material |
Wet paper-based friction materials & disc |
| Raw Materials |
45-55% Fibre (Aramid, Carbon, Composite); 20% Functional Materials; Remaining: Filling Material (Aluminium oxide, silicone soil, etc.) |
| Size Limits |
Diameter <= 600mm; Paper thickness: 0.6~2.5mm |
| Industrial Standards |
GB/T 13826-2008, GB/T 21955-2008, GB/T 37208-2018, GB/T 15141-2009 |
| Application Range |
Excavators, Loaders, Bulldozers, Tractors, Forklifts, Motorcycles, and Reducers |
| OEM Support |
Compatible with Caterpillar, Komatsu, JCB, MF, and more |
| Application |
Pressure (Mpa) |
Speed (m/s) |
Oil Temp (°C) |
Dynamic (Ud) |
Static (Us) |
Wear Rate |
| Motorcycle |
0.5 |
15 |
<=100 |
>=0.16 |
>=0.20 |
<=6 |
| Automobile |
0.8-1.5 |
15 |
<=100 |
>=0.13 |
>=0.15 |
<=3 |
| Engineering |
1.0-3.0 |
25 |
<=100 |
>=0.11 |
>=0.13 |
<=5 |
📏
Friction Material Paper Ring Dimensions
| Ring No. |
Outer Diameter (mm) |
Inside Diameter (mm) |
Thickness Range (mm) |
| HQR0101 | 125.00 | 81.00 | 0.6-2.5 |
| HQR0103 | 150.00 | 90.00 | 0.6-2.5 |
| HQR0107 | 180.00 | 120.00 | 0.6-2.5 |
| HQR0202 | 242.30 | 197.00 | 0.6-2.5 |
| HQR0301 | 300.00 | 195.00 | 0.6-2.5 |
| HQR0404 | 495.00 | 335.00 | 0.6-2.5 |
❓
Frequently Asked Questions

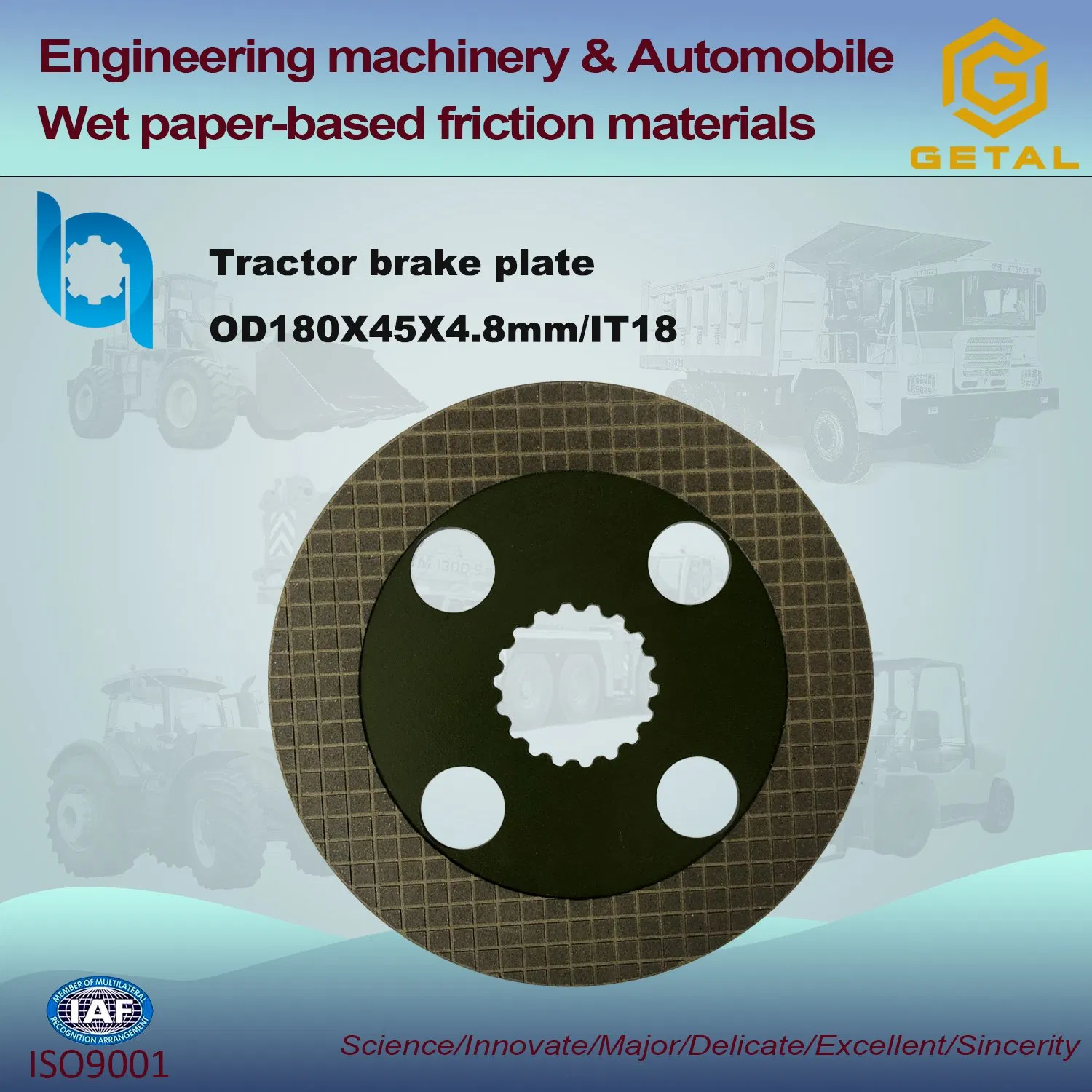

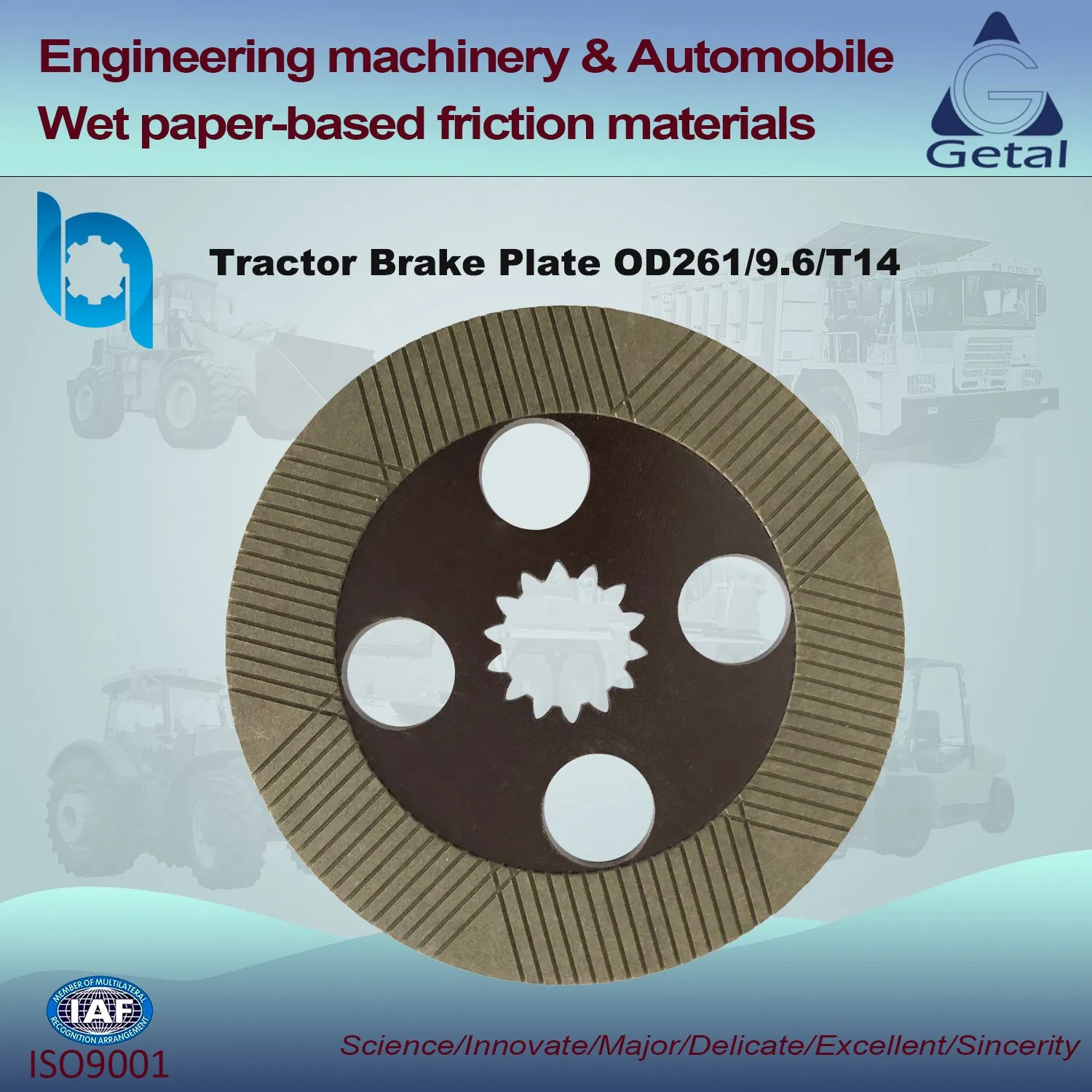

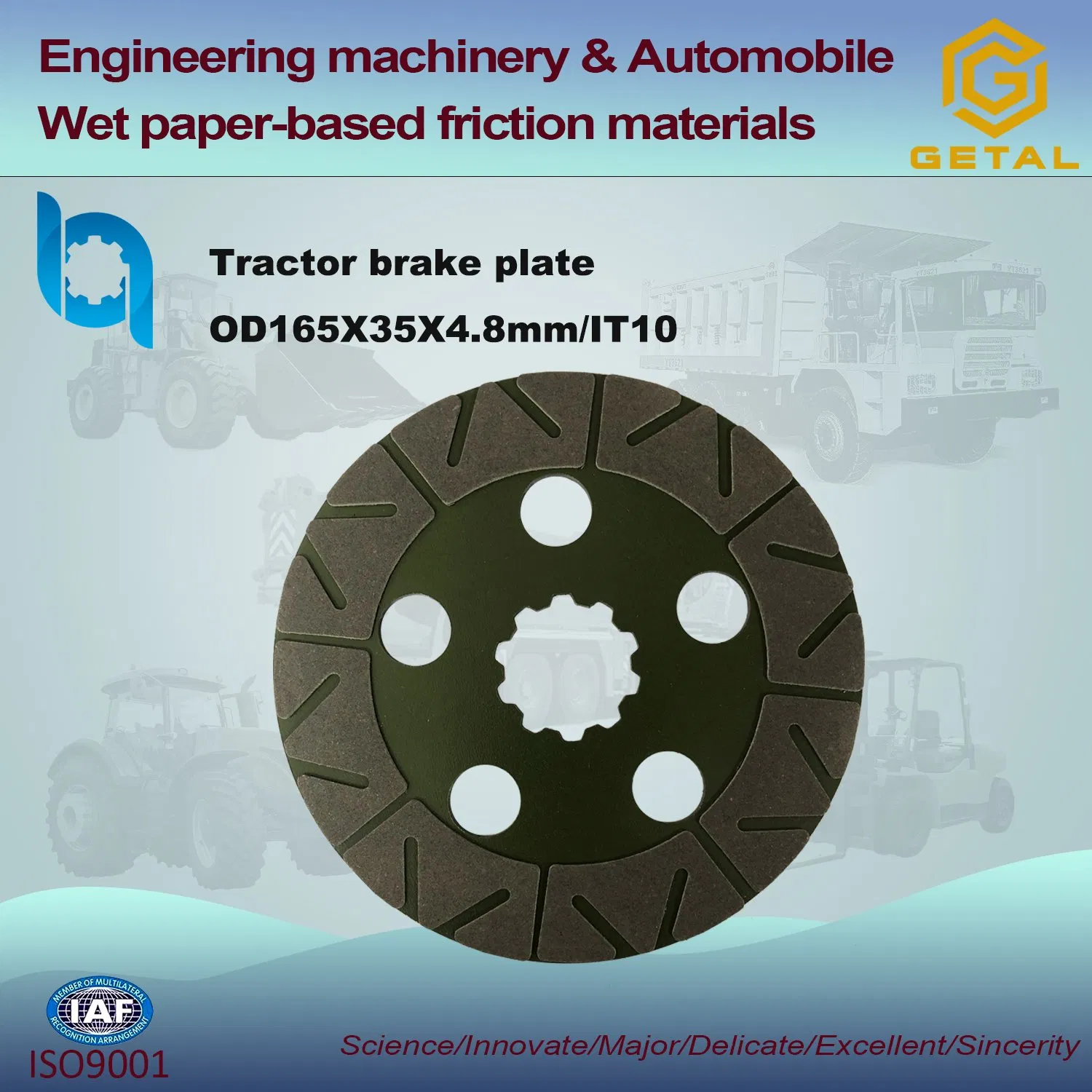

What types of machinery are these clutch discs suitable for?
They are ideal for engineering machinery (excavators, loaders, bulldozers), agricultural machinery (tractors, harvesters), logistics machinery (forklifts), and automotive industries.

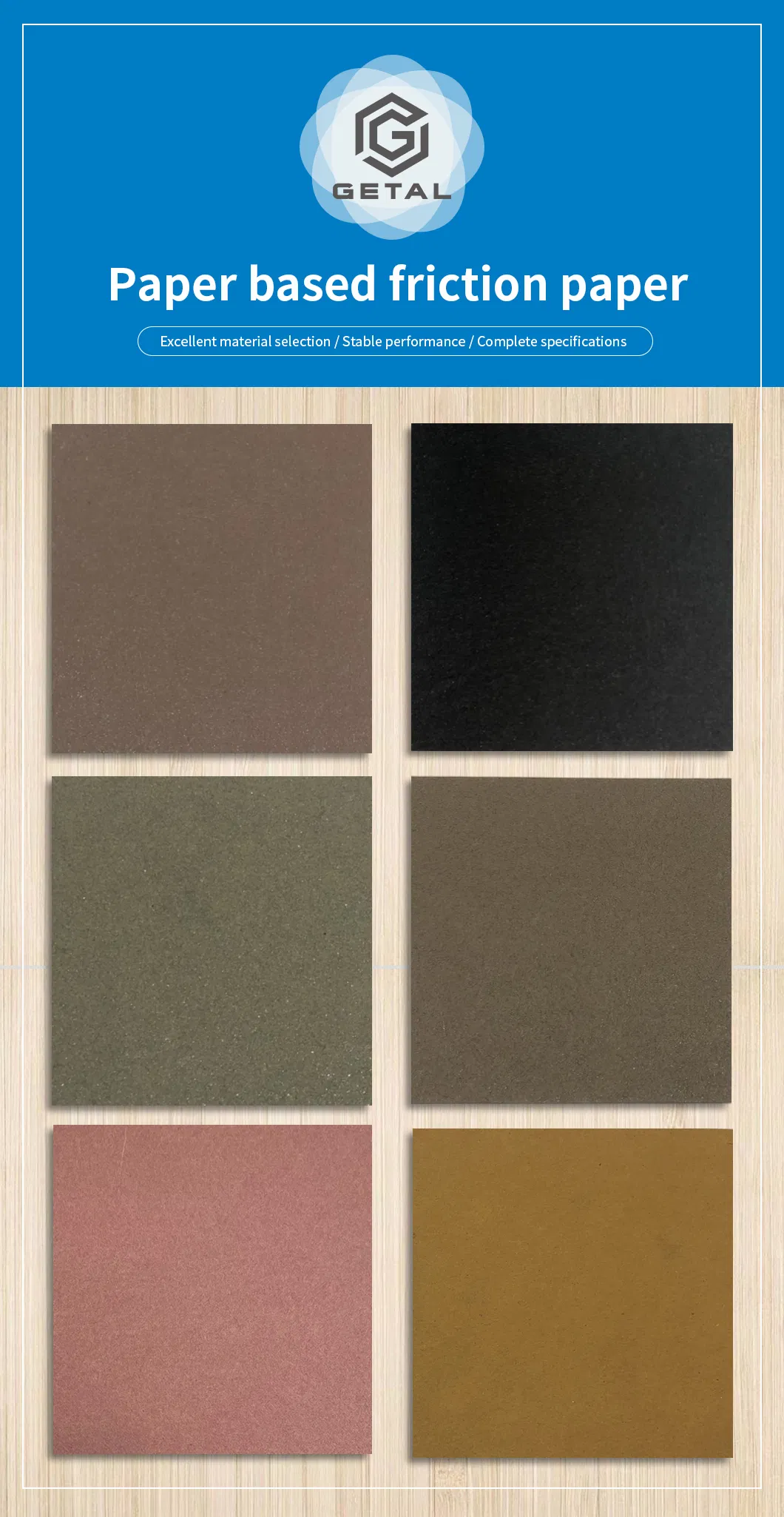

What materials are used in the friction paper layer?
The layer consists of 45-55% high-performance fibres such as aramid and carbon fibre, combined with functional raw materials and specialized fillers for optimal grip and heat resistance.
Can you provide OEM parts?
Yes, we provide wet paper-based friction discs for both OEM and aftermarket needs, supporting major brands like Caterpillar, Komatsu, JCB, and MF.
What is the maximum diameter you can produce?

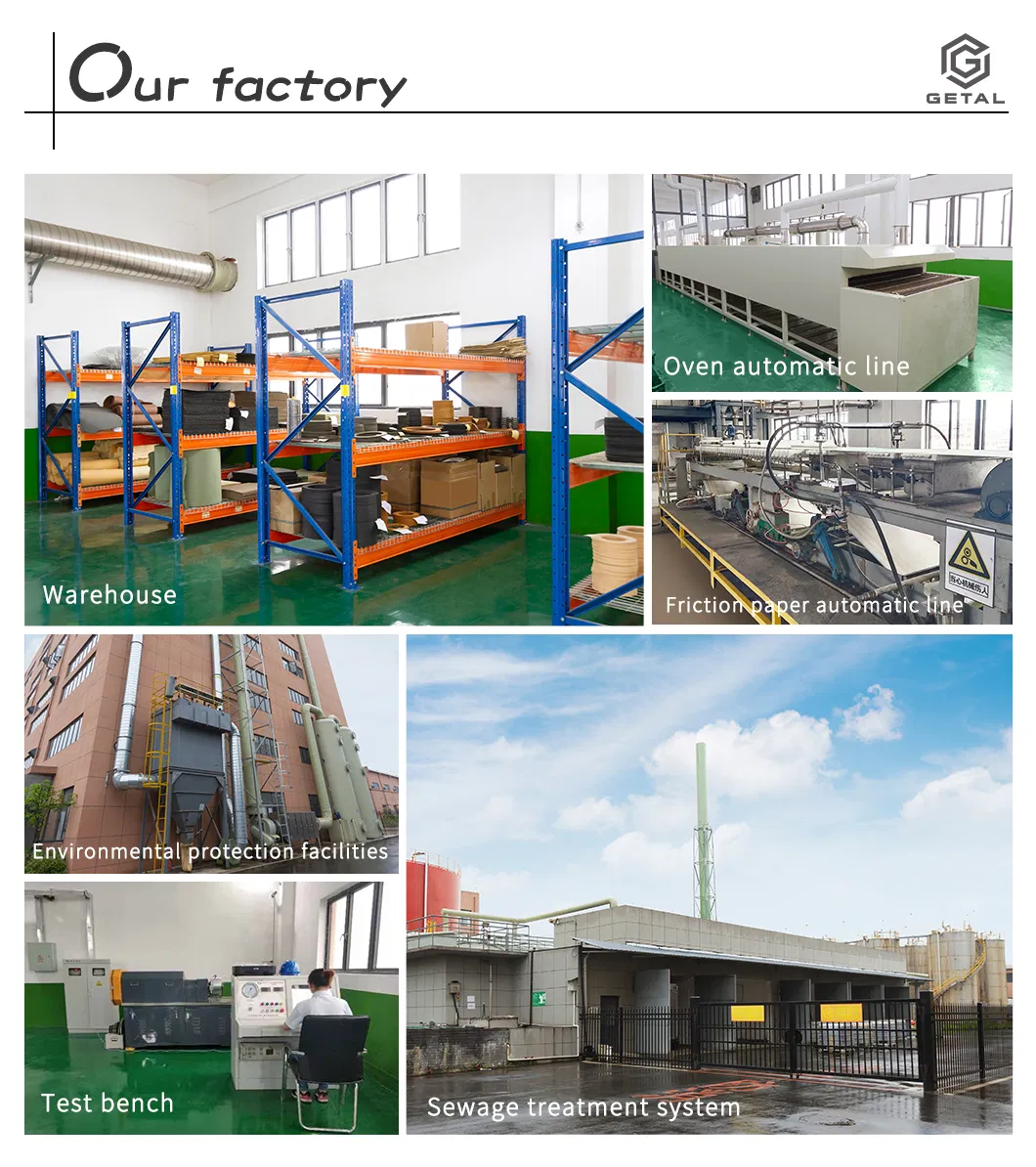

Our automatic production line can handle paper widths up to 600mm, allowing for friction disc diameters up to 600mm.
What standards do your products follow?
Our products comply with several industrial standards including GB/T 13826-2008 and GB/T 37208-2018 for wet-type non-metallic friction materials.
What is the monthly production capacity?
We have a stable production capacity of approximately 30 tons per month.
