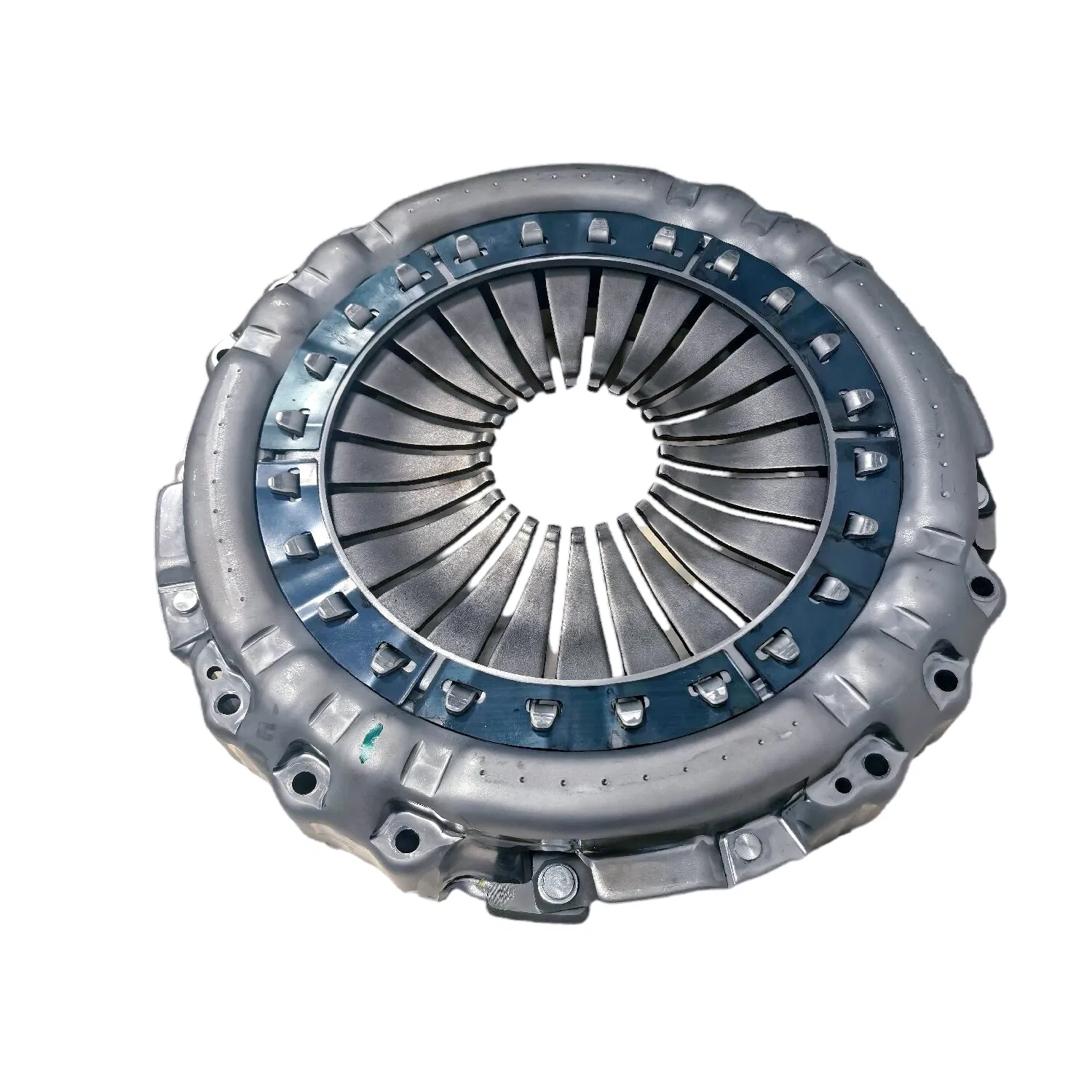

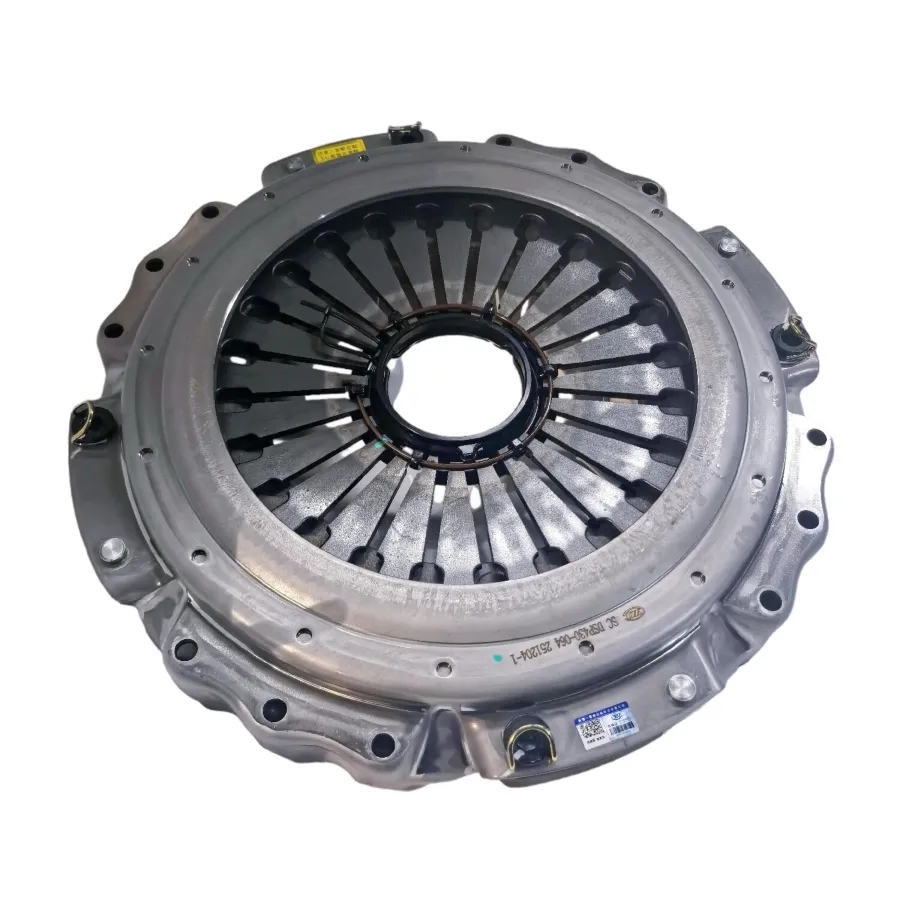

Engineered for 2600Nm torque, this clutch cover provides ≥32,000N clamping and max 11,000N release force. Features φ106mm release finger diameter, 13-14mm stroke, and 3.6mm wear allowance.
The assembly has φ475mm spigot diameter, 55mm install height, and 53.5mm bolt step. Pressure plate: φ288mm inner, φ432mm outer. Gauge plate: 10.6mm thick. Max height: 87mm, outer diameter φ482mm, ensuring reliable performance and easy integration.
| SPECIFICATIONS DATA | |
|---|---|
| Product Name | AMT Clutch Cover Assembly |
| Matching Engine Torque | 2600Nm |
| Clamping Force | 32000N min |
| Release Force | 11000N max |
| Release Finger Working Diameter | φ106mm |
| Installation Height | 55mm |
| Release Stroke | 13-14mm |
| Wear Amount | 3.6mm |
| Spigot Diameter | φ475mm |
| Gauge Plate Thickness | 10.6mm |
| Pressure Plate Outer/Inner Diameter | φ432mm / φ288mm |
| Maximum Outer Diameter | φ482mm |
Hot Coining Process
Support Ring Design

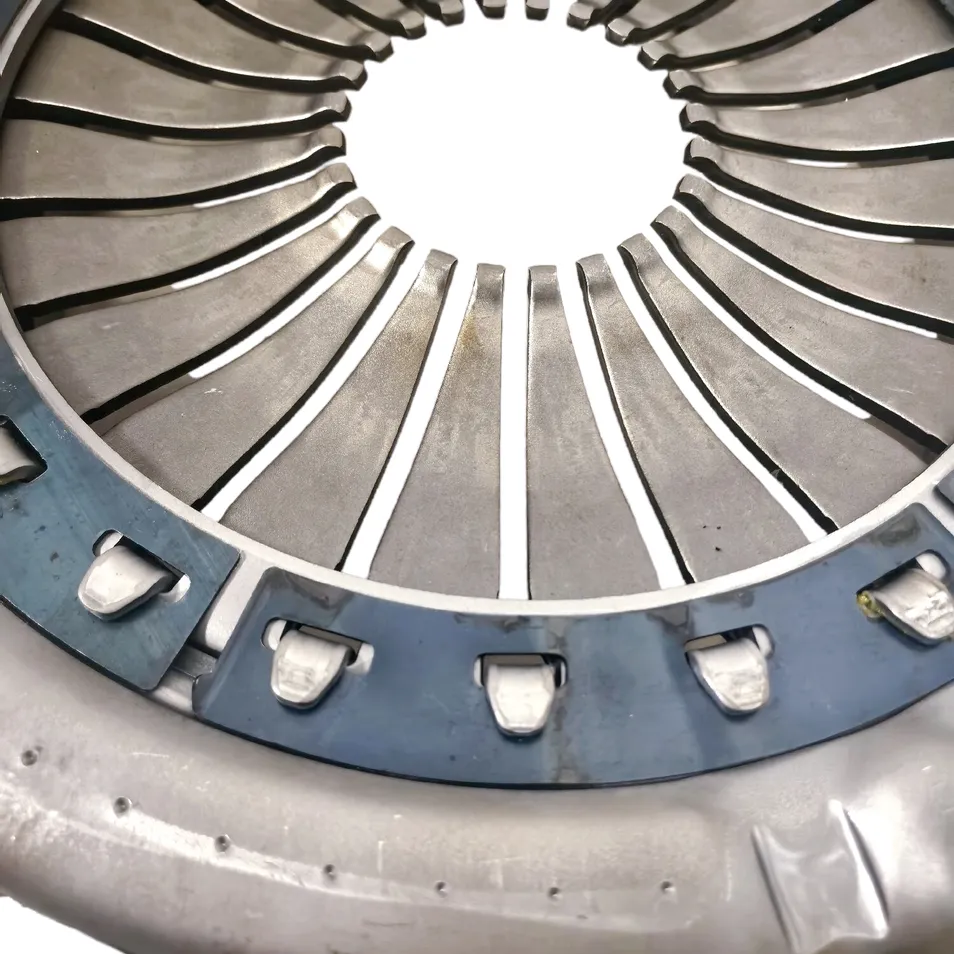

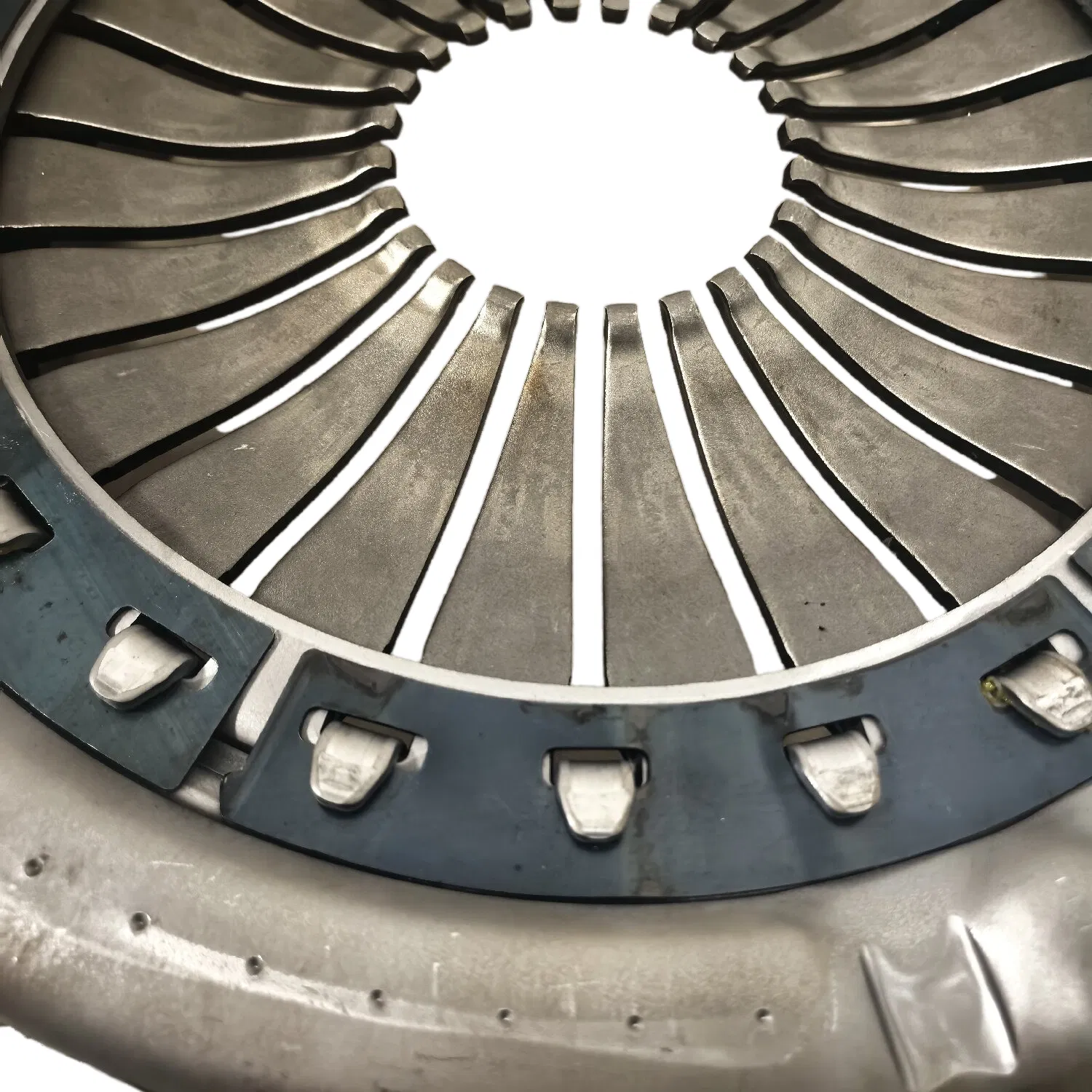

Diaphragm Spring Hot Coining: Formed by high-precision hot coining, the diaphragm spring's clamping and release force remain stable within 10% after 3 million durability cycles, meeting strict design specs.

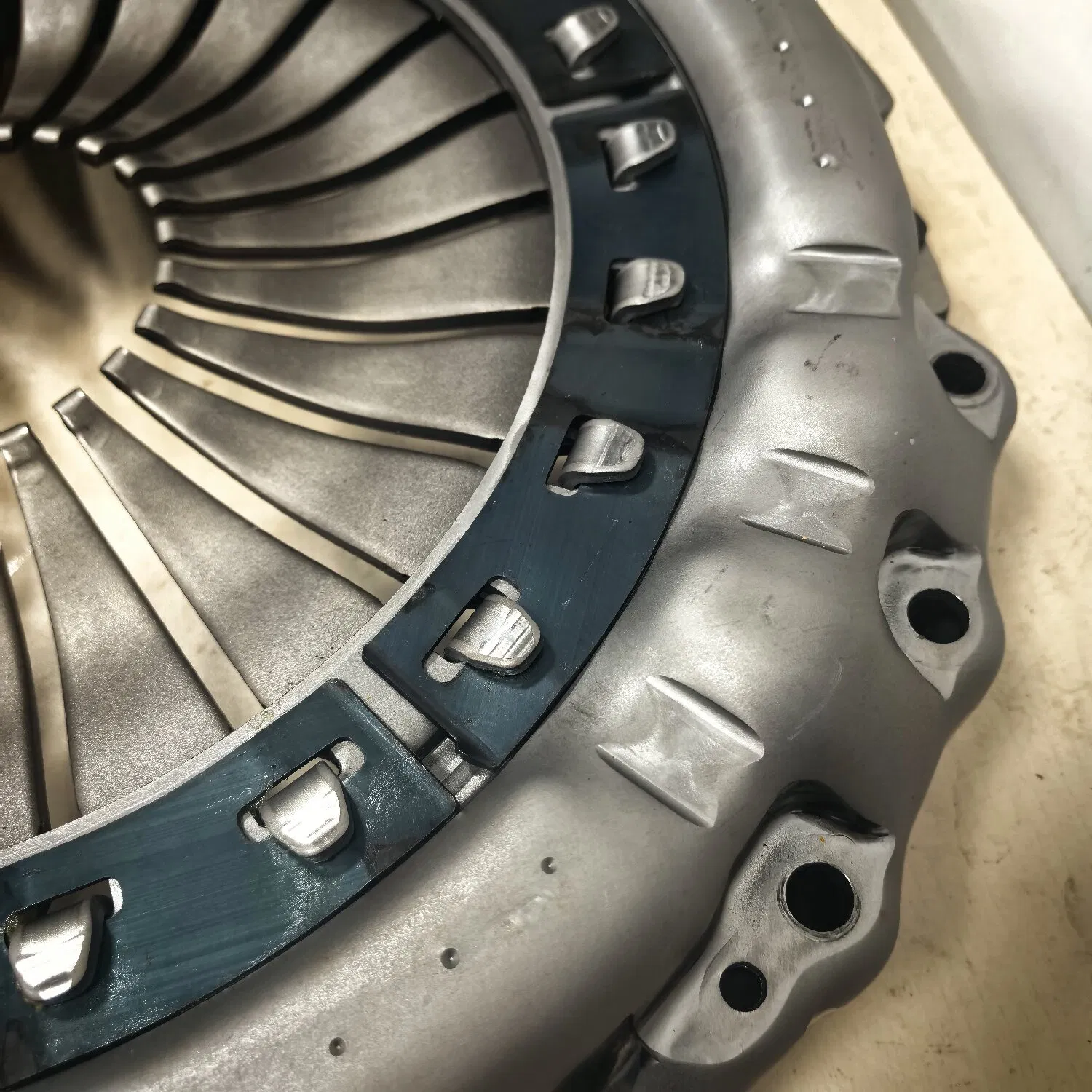

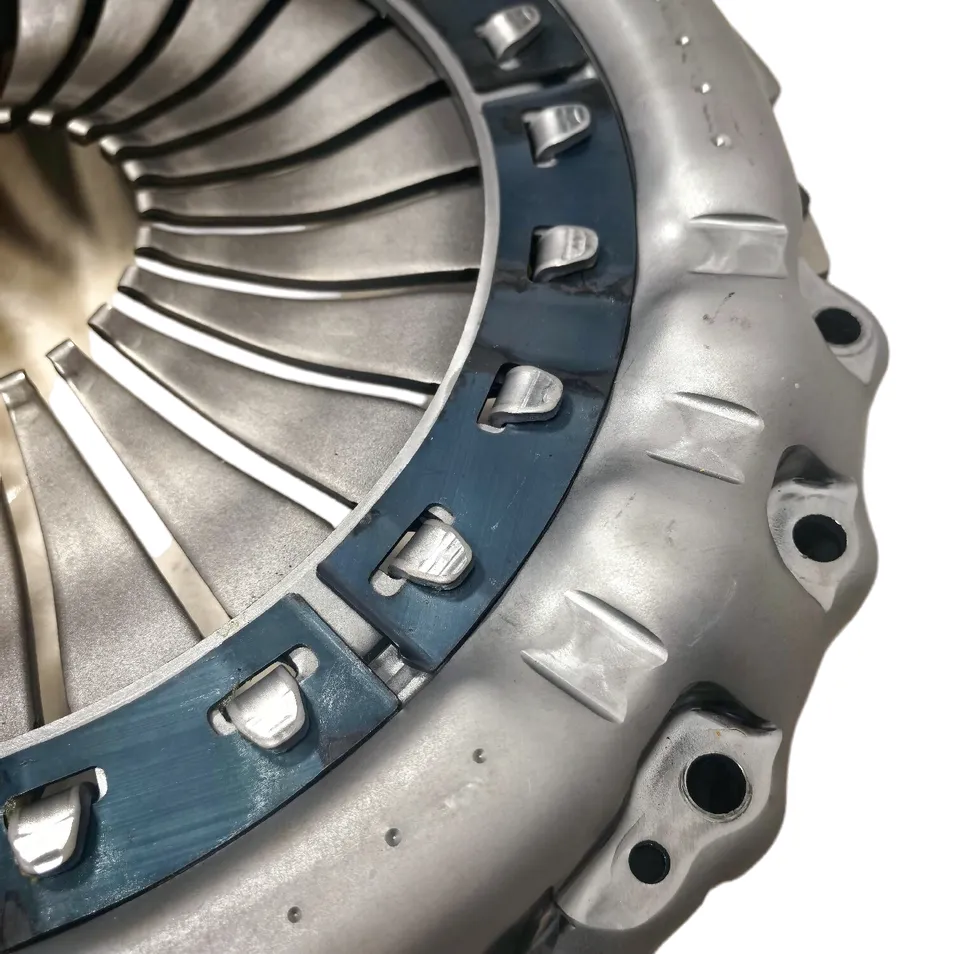

Elastic Support Ring: This design eliminates wear clearance between diaphragm spring and fulcrum, extending clutch life. It stabilizes release characteristics, aiding precise calibration and regulation of the AMT system for improved shift smoothness.
Release Force Curve Design: Optimized for AMT cover release, focusing on stiffness ≤ 100 N/mm and variation < 12%. Ensures high stability and improved AMT shift quality and reliability.

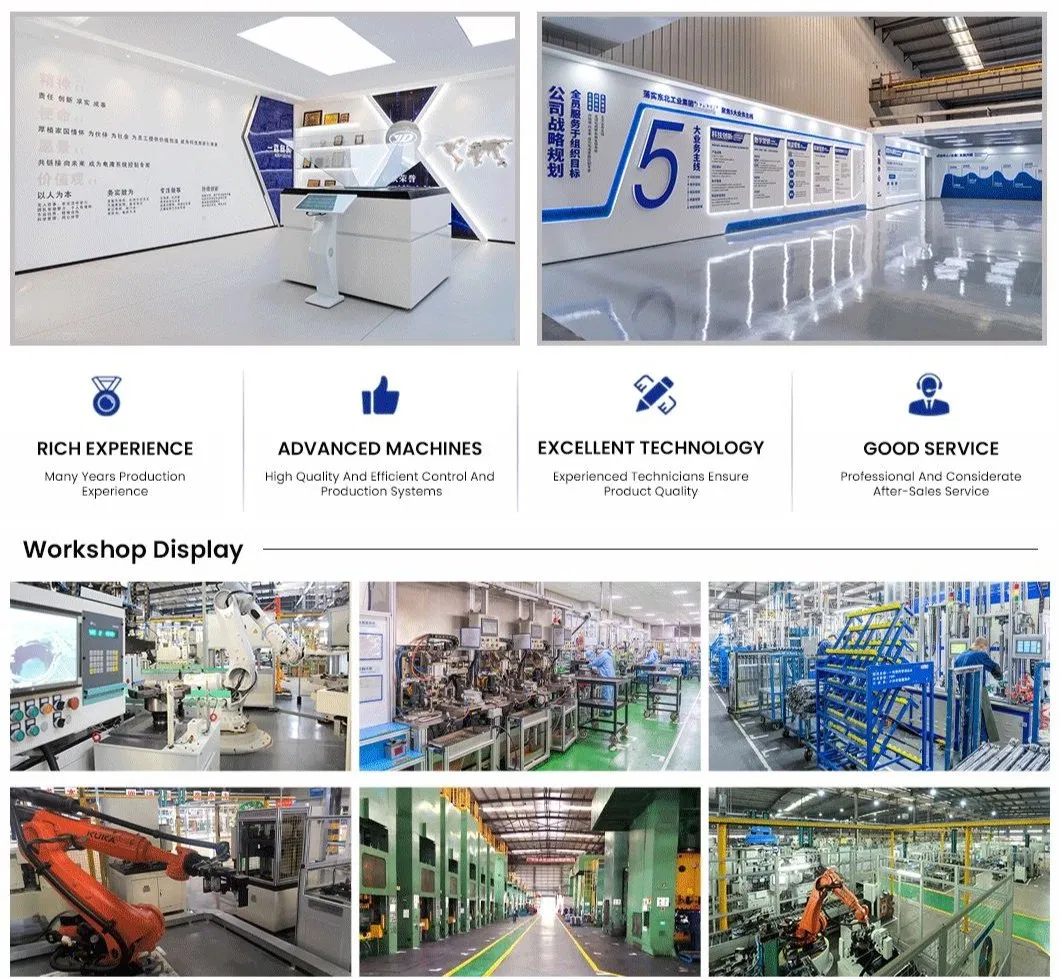

Our facility boasts a national tech center with over 45 invention and 191 utility patents. Technical personnel utilize 3D design, PLM, MES, and advanced simulation tools like ANSYS and ABAQUS.
The leading domestic CNAS lab is equipped with 106 experimental equipment sets, specializing in vehicle pedal comfort and NVH analysis, as well as transmission and hydraulic system testing.
