Fricwel Miba Clutch Factory Price Ceramic Clutch Disc 9041

1 / 5

Fricwel Miba Clutch Factory Price Ceramic Clutch Disc 9041

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

Product Specifications

Model NO.

9041

Part

Clutch Button

Material

Bronze

Classification

Friction Clutch

Certification

ISO/TS16949:2002

Stroke

2 Stroke

Usage

Heavy Duty Trucks, Car, Racing Cars, Tractors

Size

224*150*3.5mm

Capacity

300,000 PCS/Month

Transport

Box + Pallet

⚙

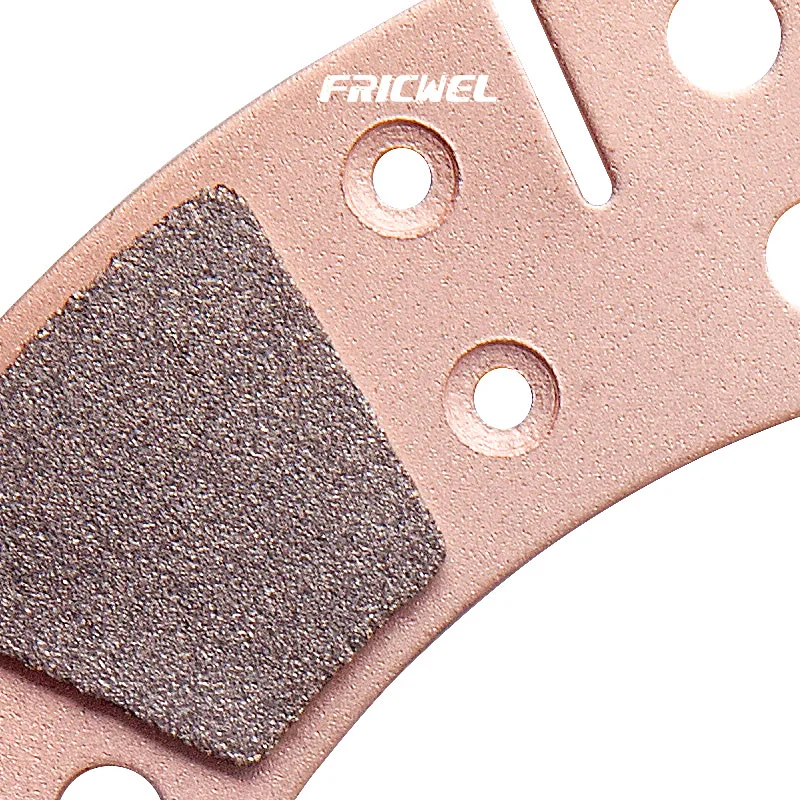

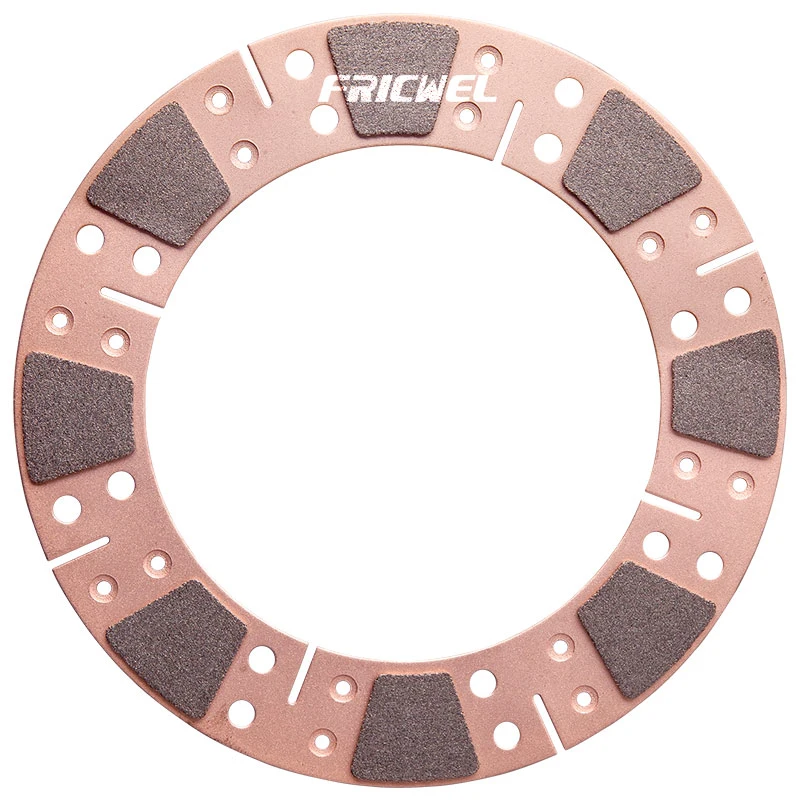

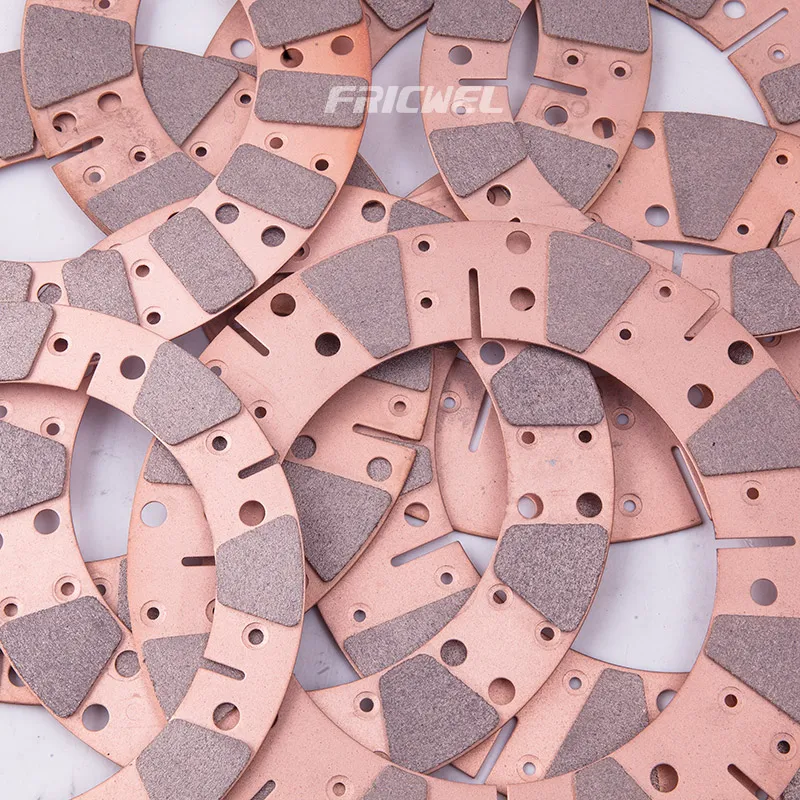

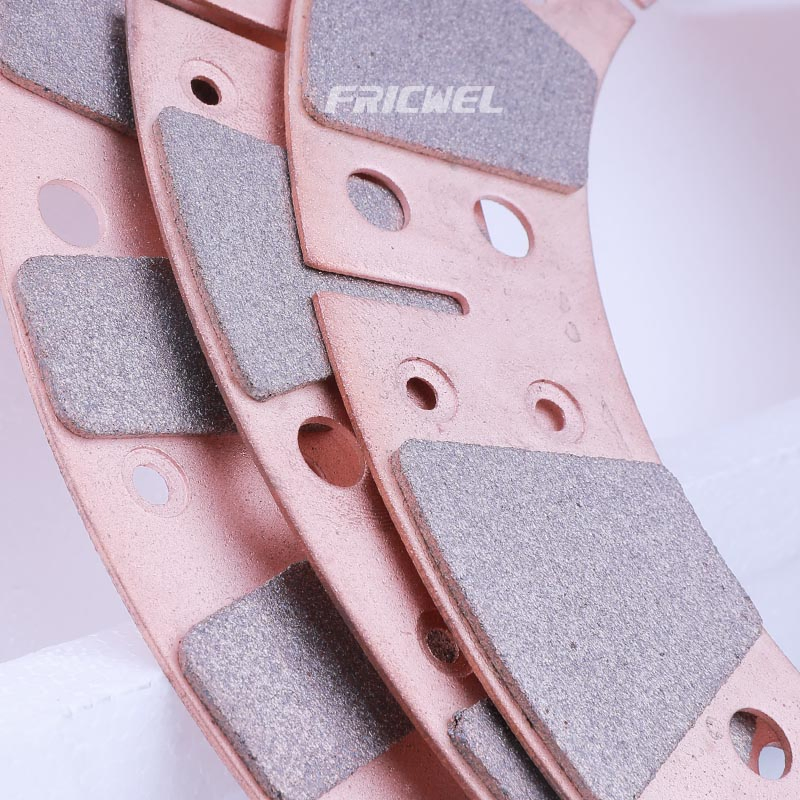

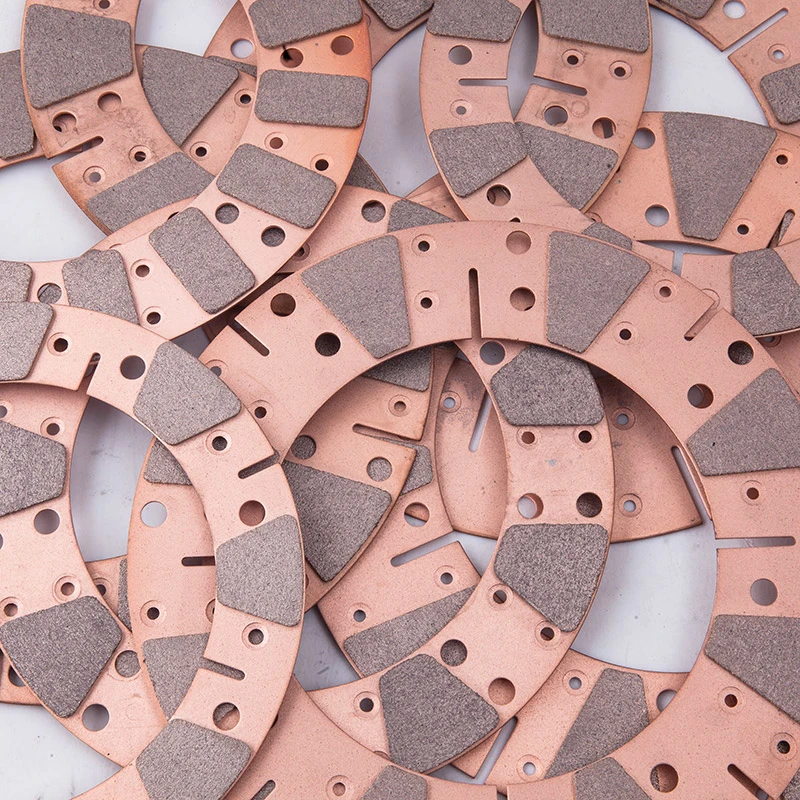

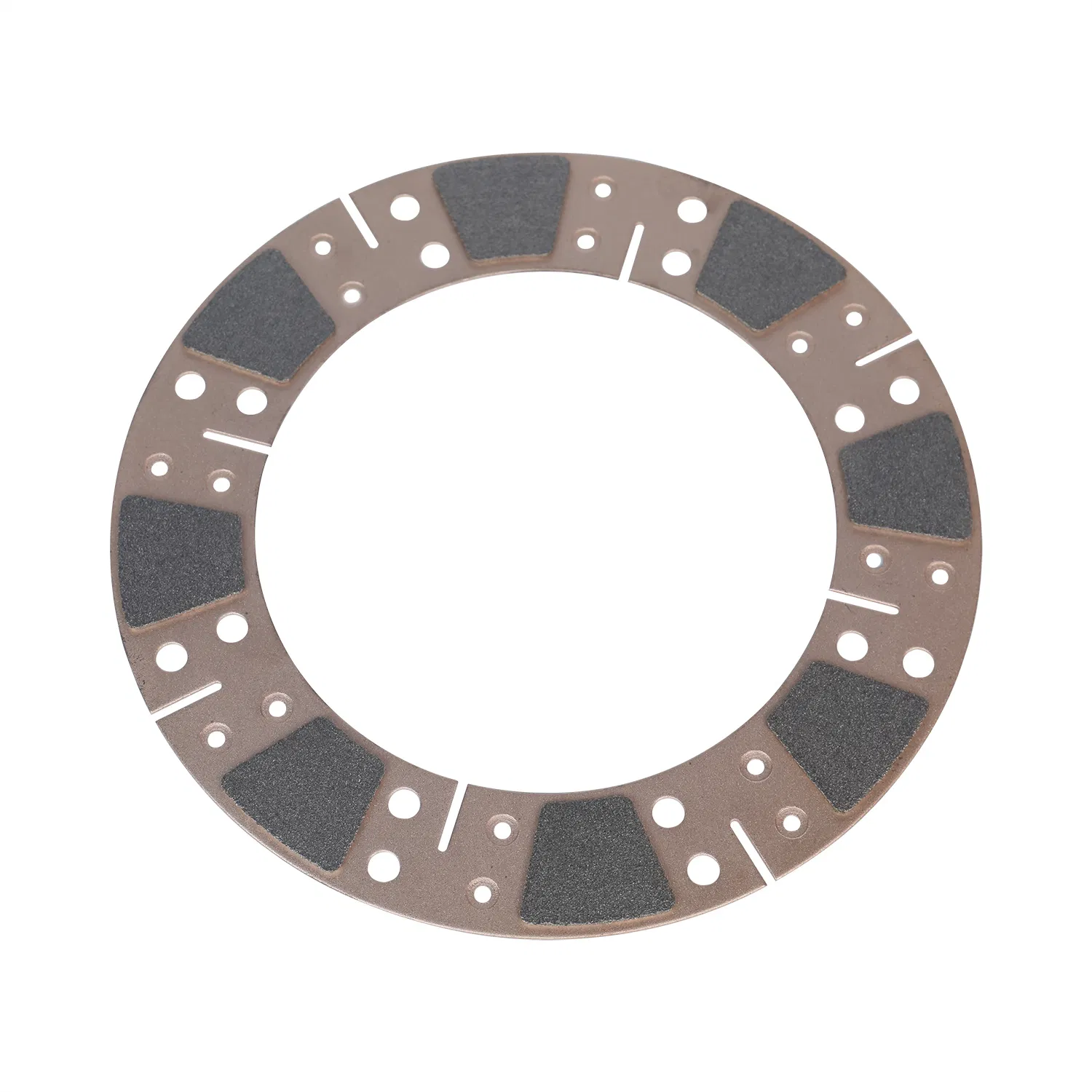

High Performance Racing Disc 9041

Specifications: Dim.: 224*150*3.5mm, 8 friction buttons, 32 holes with 8 grooves.

Packaging: 5 PCS per box, exterior with fiber board box pallet (non-wooden).

★

Performance & Advantages

High Friction Coefficient: Product range maintains 0.49-0.58.
Durability: Low wearing rate (0.05-0.18), competing with top-tier US and European standards.
Flywheel Protection: Hardness levels of BNH 25+/- 5 ensure no harm to the flywheel side.
Versatile Formulas: Available in regular, low-wearing, and iron-based formulas.
Reliability: Passed rigorous bending tests with less than 5% baring area on steel back plates.
Wide Compatibility: Suitable for TATA, MACK trucks, Leyland/Fiat tractors, and racing applications.
Extended Lifespan: Lasts 3 times longer than organic materials and 2 times longer than common copper-based materials.

▩

Dimensions & Specifications

NO.	REF NO.	DESCRIPTION	DIMENSION (MM)	US SPEC			EUROPE SPEC
NO.	REF NO.	DESCRIPTION	DIMENSION (MM)	CODE	INCH	MM	CODE	INCH	MM
1	140.360	4 Lateral holes / straight edge	139X62	VSR-20	0.133	3.378	4GB	0.140	3.556
2	156.400	2 Vertical holes	77X69	VTL-5	0.156	3.962	GBV	0.156	3.962
3	173.440	2 Vertical holes	63X57	VT-7	0.178	4.521	BV	0.173	4.394
4	125.320	2 Horiz holes / curved bottom	78X32	1H-125	0.125	3.175	BHC	0.125	3.175

🏭

Manufacturing Excellence

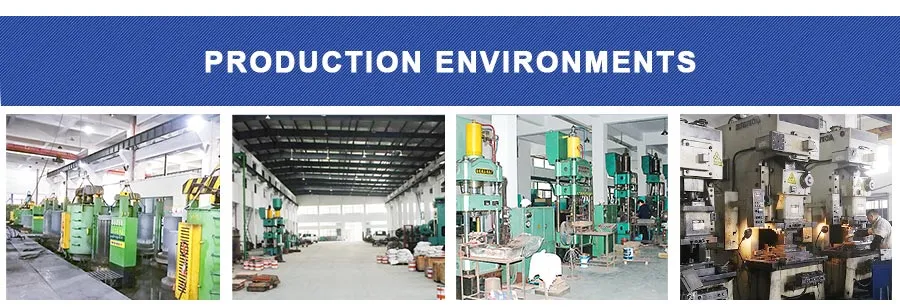

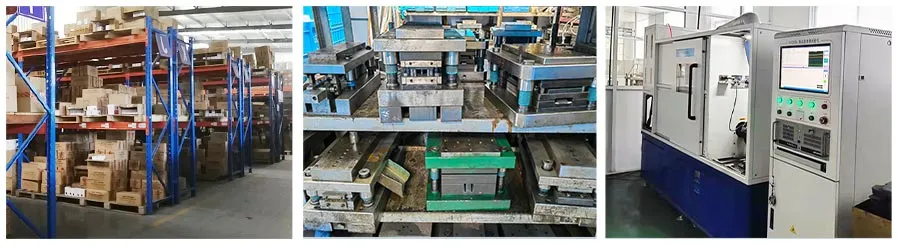

Operating since 1992, the production facility spans over 20,000 square meters with an annual output exceeding 1,000 tons. Specializing in clutch facings, copper clutch buttons, and friction discs, the facility is among the earliest friction material specialists in the region.

Equipped with advanced lathes, processing machinery, and engineering testing instruments, all processes adhere to ISO9001 quality system certifications.

Frequently Asked Questions

What vehicles is the 9041 racing disc compatible with?

It is designed for high-performance applications including heavy-duty trucks (TATA, MACK), tractors (Leyland, Fiat), and various racing car disc assemblies.

How long is the service life of these clutch buttons?

Our bronze/copper-based buttons offer a significantly longer lifespan—approximately 3 times longer than organic materials and 2 times longer than standard copper materials.

Do your products hold any international certifications?

Yes, our production processes and products have passed CE, ISO9001, and TS16949 certifications, ensuring international quality standards.

What is the friction coefficient range for your clutch products?

Our product range features a high friction coefficient typically ranging between 0.49 and 0.58.

What are the typical lead times and shipping methods?

Delivery usually takes about 45 days after advance payment. Products are packed in strong export cartons secured on non-wooden pallets for safe transit.

Can these buttons be used on standard flywheels?

Yes, with a hardness rating of BNH 25+/- 5, they provide optimal performance without causing harmful wear to the flywheel side.
