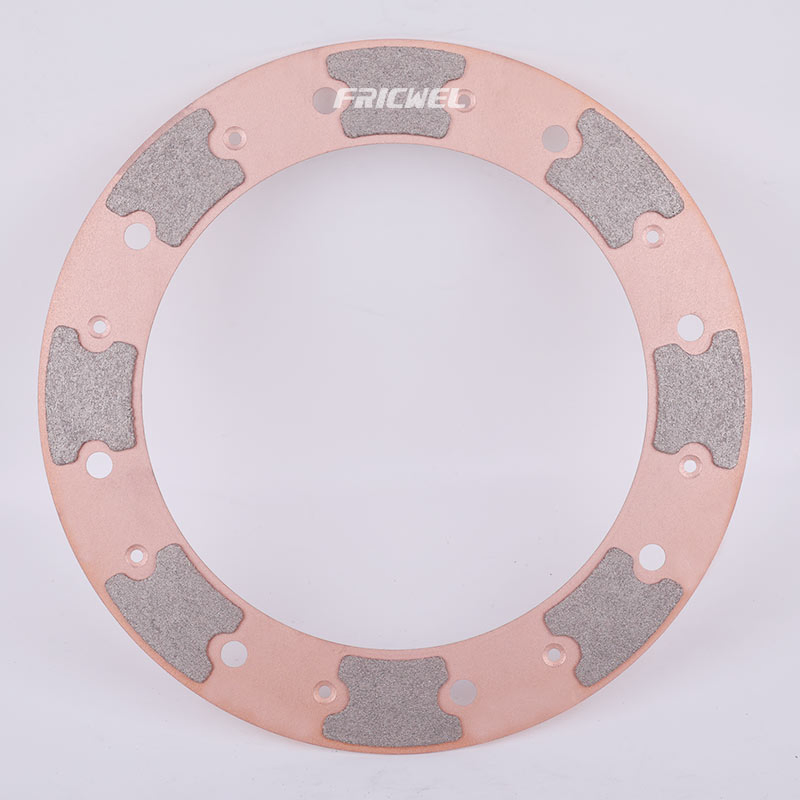

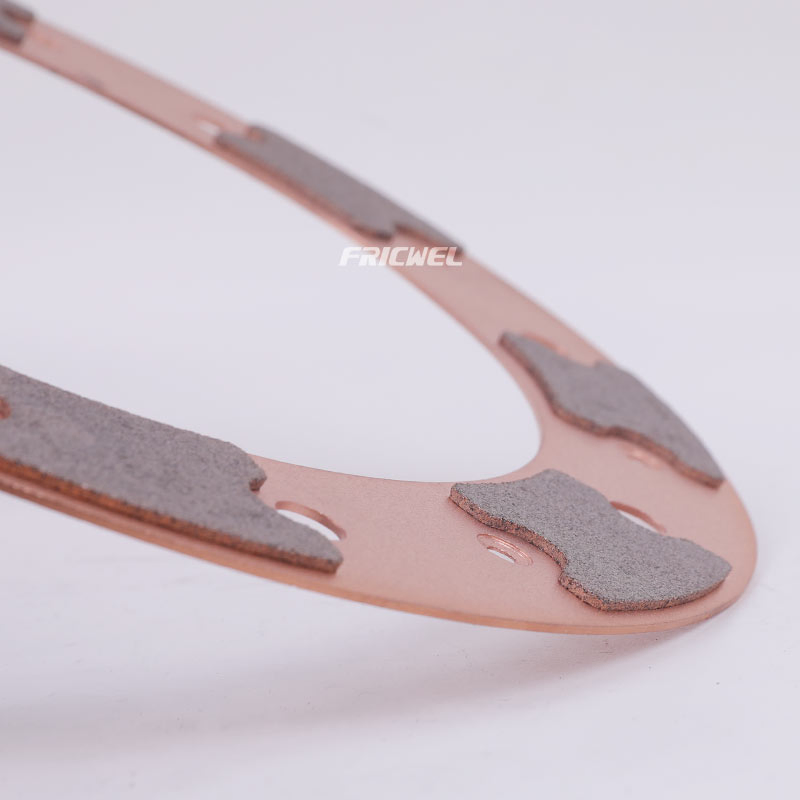

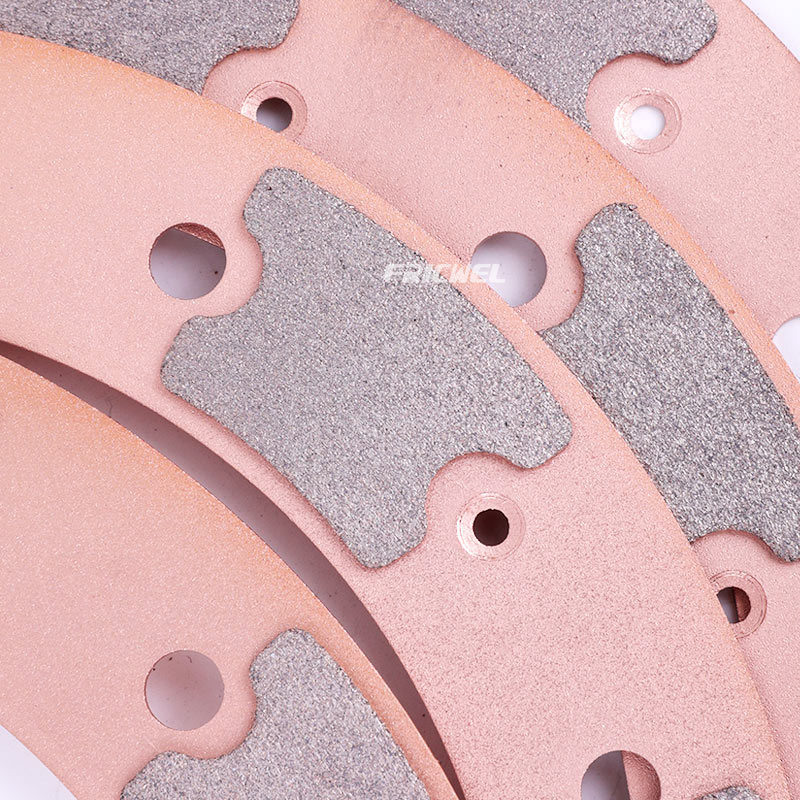

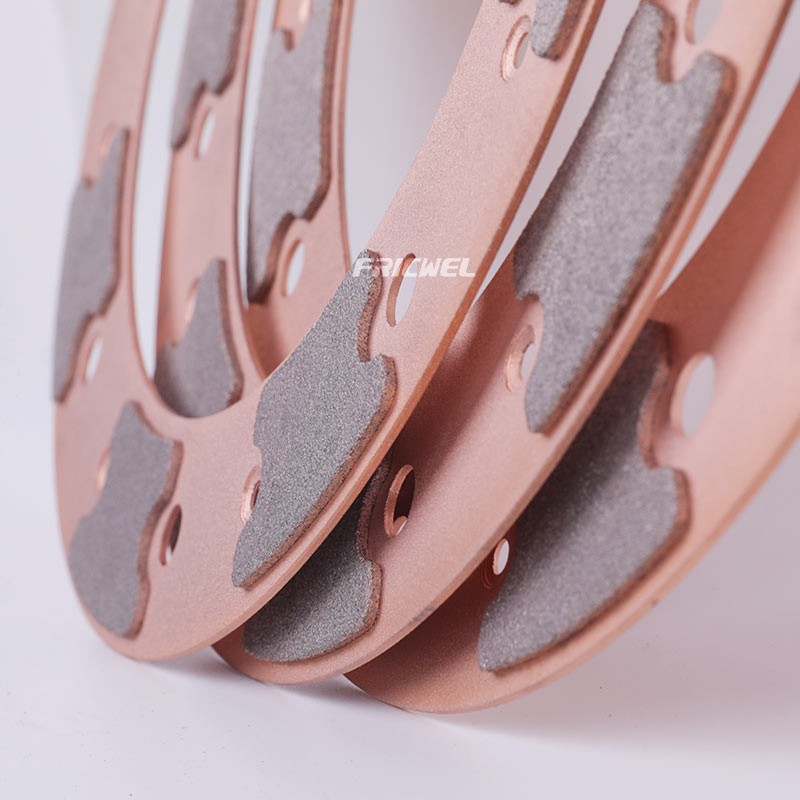

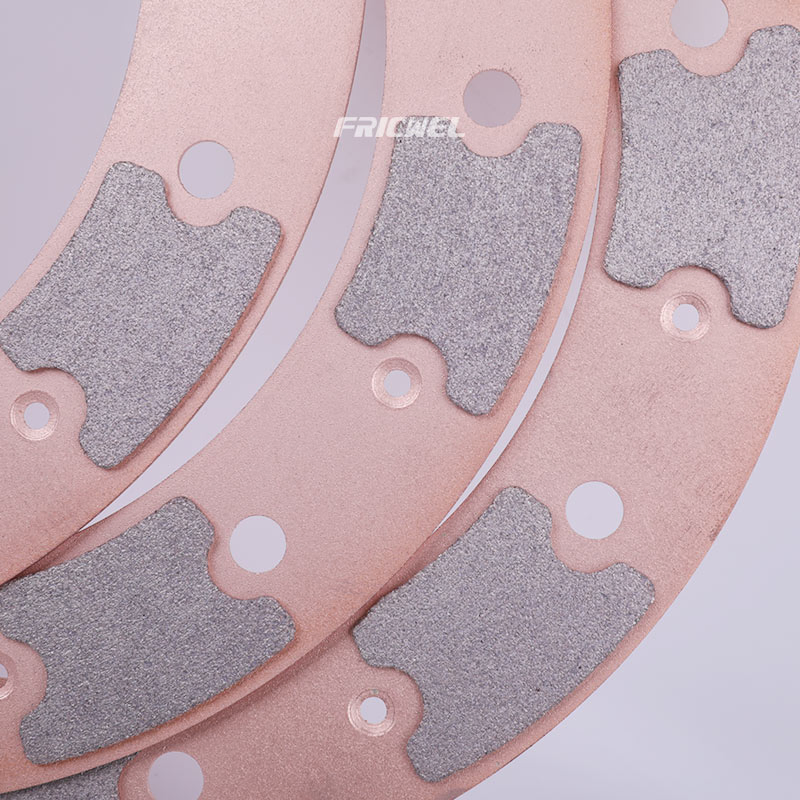

Fricwel Auto Parts Copper Car Clutch Button Racing Disc CF280198
Fricwel Auto Parts Copper Car Clutch Button Racing Disc CF280198
Fricwel Auto Parts Copper Car Clutch Button Racing Disc CF280198
Fricwel Auto Parts Copper Car Clutch Button Racing Disc CF280198
Fricwel Auto Parts Copper Car Clutch Button Racing Disc CF280198
1 / 5
Fricwel Auto Parts Copper Car Clutch Button Racing Disc CF280198
Fricwel Auto Parts Copper Car Clutch Button Racing Disc CF280198
Fricwel Auto Parts Copper Car Clutch Button Racing Disc CF280198
Fricwel Auto Parts Copper Car Clutch Button Racing Disc CF280198
Fricwel Auto Parts Copper Car Clutch Button Racing Disc CF280198

Fricwel Auto Parts Copper Car Clutch Button Racing Disc CF280198

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

Basic Info
Model NO.
CF280198
Part
Clutch Button
Material
Bronze
Classification
Friction Clutch
Certification
ISO/TS16949:2002
Stroke
2 Stroke
Usage
Heavy Duty Trucks, Car, Racing Cars, Tractors
Working Mode
Power Combining
Size
280X198X3.5
HS Code
8708931
Production Capacity
300, 000 PCS/Month
Origin
China
Packaging & Delivery
Package Size
30.00cm * 30.00cm * 5.00cm
Package Gross Weight
3.000kg
Transport Package
Box+Pallet
Product Description

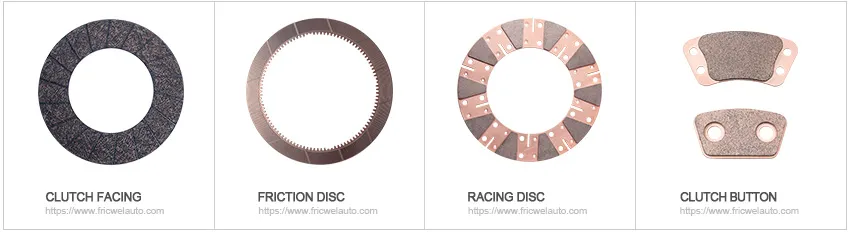

Related Products:

Copper Car Clutch Button

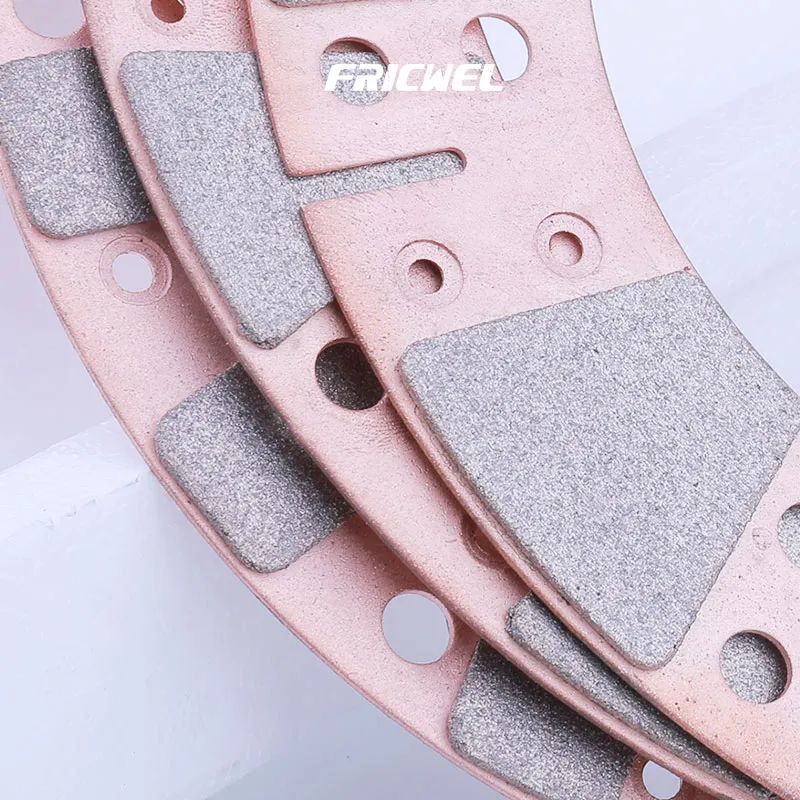

Clutch Button Detail 1

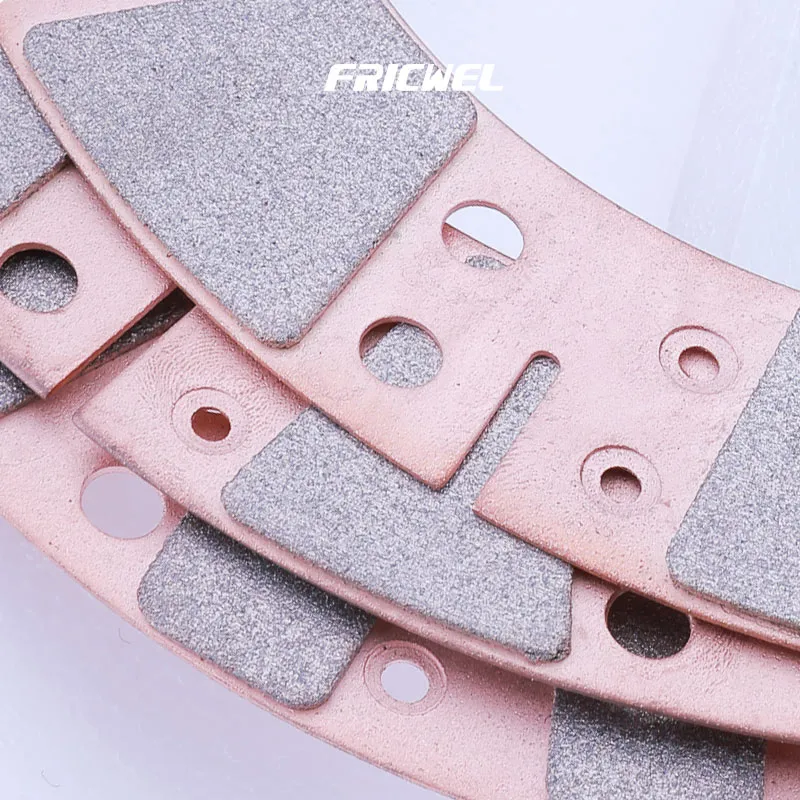

Clutch Button Detail 2

High Performance Racing Disc 9875-3

✓
Dim.: 250*160*3.5mm, 16 friction buttons 32 holes.
✓
Packaging: 5 PCS per box, exterior with fiber board box pallet (non-wooden box).
Products Performance & Advantages
1
Coefficient of friction range: 0.49-0.58
2
Low wearing rate (0.05-0.18), competing with US and European quality.
3
Product hardness: BNH 25+/- 5, safe for the flywheel side.
4
Formulas: Regular, low wearing, and iron-based formula.
5
Passed bending test, less than 5% baring area on the steel back plate.
6
Longer life: ~3 times organic material and 2 times common copper materials.
Dimensions & Specifications
NO. PART NO. DESCRIPTION GROOVES DIMENSION
1FR-3146 PADS RACING DISC6 GROOVES215*155*6.0mm
2785A16 HOLESNONE190*132*3.5mm
3785B16 HOLESNONE190*132*3.0mm
480378 PADS 16 HOLES8 GROOVES224*150*3.5mm
58037-SP9 PADS 18 HOLES9 GROOVES218*150*3.5mm
680399 PADS 18 HOLES9 GROOVES215*150*3.5mm
785594 PADS 9HOLES4 GROOVES178*48*3.5mm
886568 PADS 16 HOLES8 GROOVES212*150*3.5mm
9909C9 PADS 36 HOLESNONE231*155*3.5mm
1090359 PADS 36 HOLES9 GROOVES245*152*3.5mm
119035A9 PADS 36 HOLES9 GROOVES240*152*3.5mm
129041A8 PADS 32 HOLES8 GROOVES240*160*3.5mm
139875-116 PADS WITH 32 HOLESNONE250*160*3.5mm
149875-28 PADS WITH 32 HOLES8 GROOVES250*160*3.5mm
15B1000010 PADS 40 HOLES10 GROOVES264*164*3.5mm
Manufacturing Environment

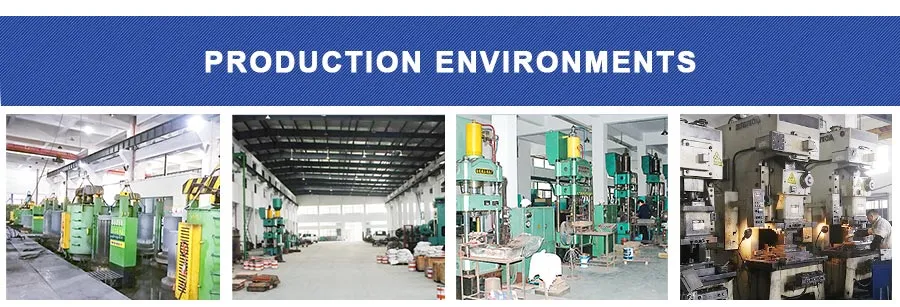

Factory Overview

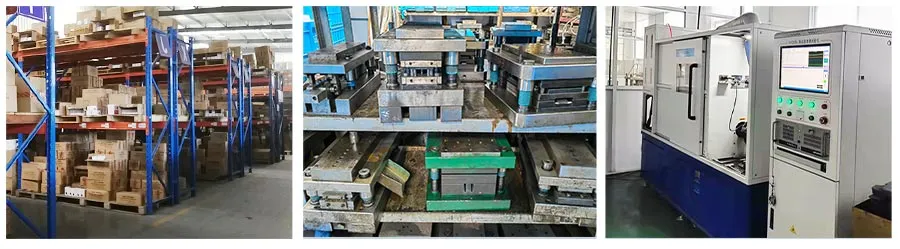

Production Line

Founded in 1992, the factory covers an area of more than 20,000 square meters, with an annual output of about 1,000 tons. The main business is the production and sales of auto parts products, such as clutch facings, copper clutch buttons, friction disc and related accessories. The facility has passed ISO9001 quality system certification and utilizes advanced lathes and processing equipment.

Key Advantages
✓
Focus on friction materials production for more than 20 years.
✓
Strict quality control system and OEM service availability.
✓
One year quality guarantee since the date of delivery.
✓
Certified by CE, ISO, and TS16949.
✓
Global market presence: North & South America, Europe, Asia, and Africa.
Quality Certification
Frequently Asked Questions (FAQ)
Q1: What materials are your clutch buttons made of? A: Our clutch buttons are primarily made of high-quality Bronze and copper-based friction materials, available in regular, low-wearing, and iron-based formulas.
Q2: Are these products suitable for high-performance racing? A: Yes, our products are specifically designed for high-performance racing discs, heavy-duty trucks, cars, and tractors.
Q3: What certifications do your manufacturing processes follow? A: Our production processes are certified under ISO9001, CE, and ISO/TS16949:2002 standards to ensure top-tier quality.
Q4: How does the lifespan of your friction material compare to organic materials? A: Our copper-based materials last almost 3 times longer than organic materials and 2 times longer than common copper-based materials.
Q5: What is the typical lead time for an order? A: The delivery date is approximately 45 days after receiving the advance payment, depending on the order specifications.
Q6: Do you provide a quality guarantee? A: Yes, we provide a one-year quality guarantee from the date of delivery.
