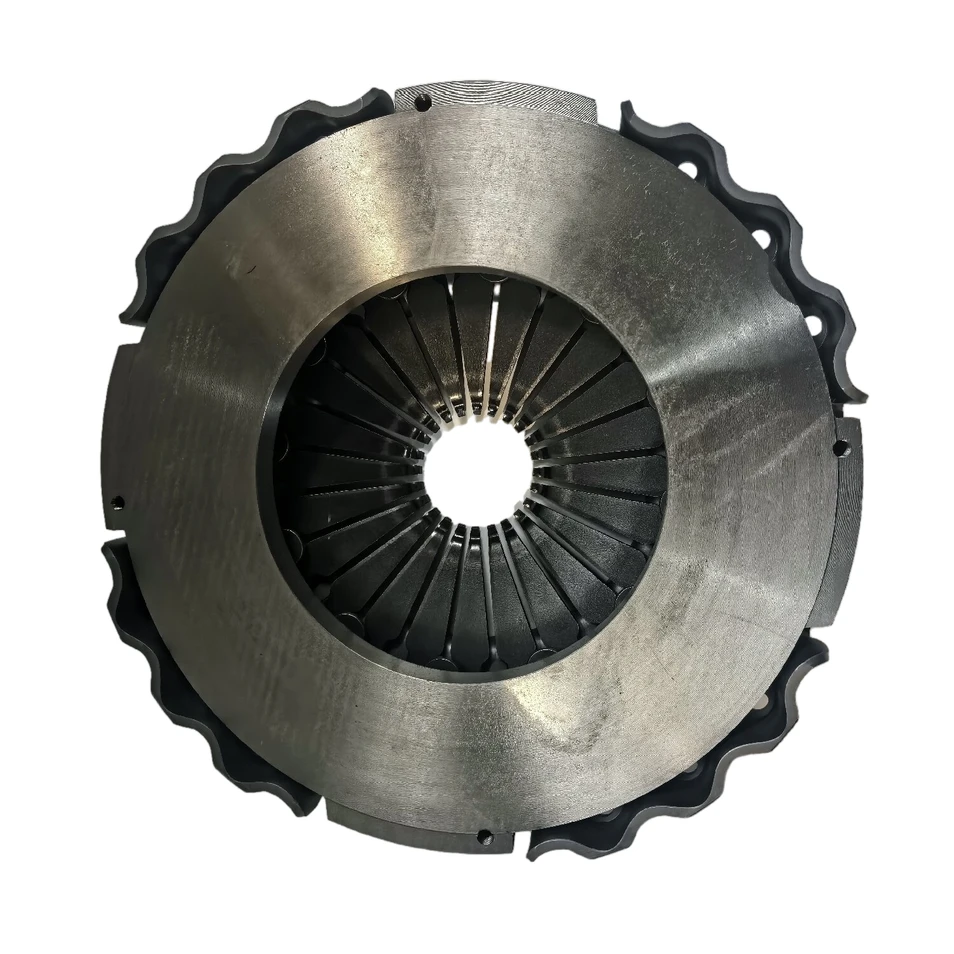

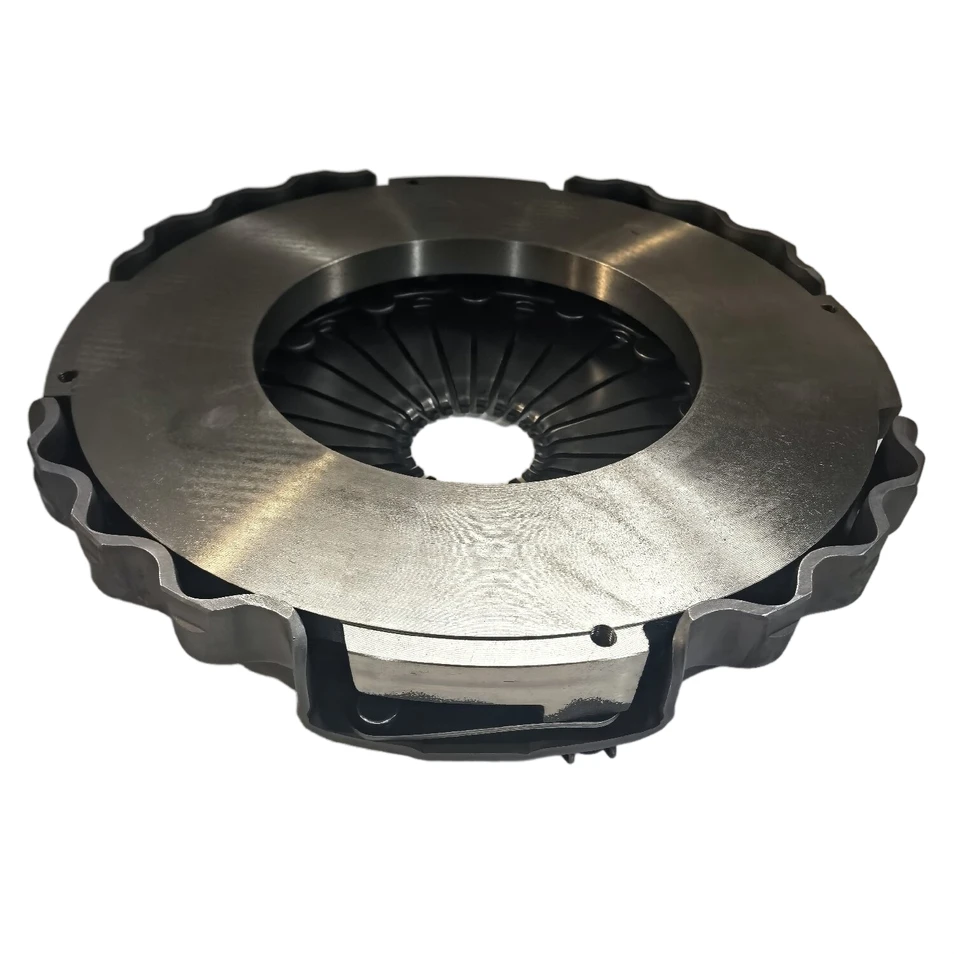

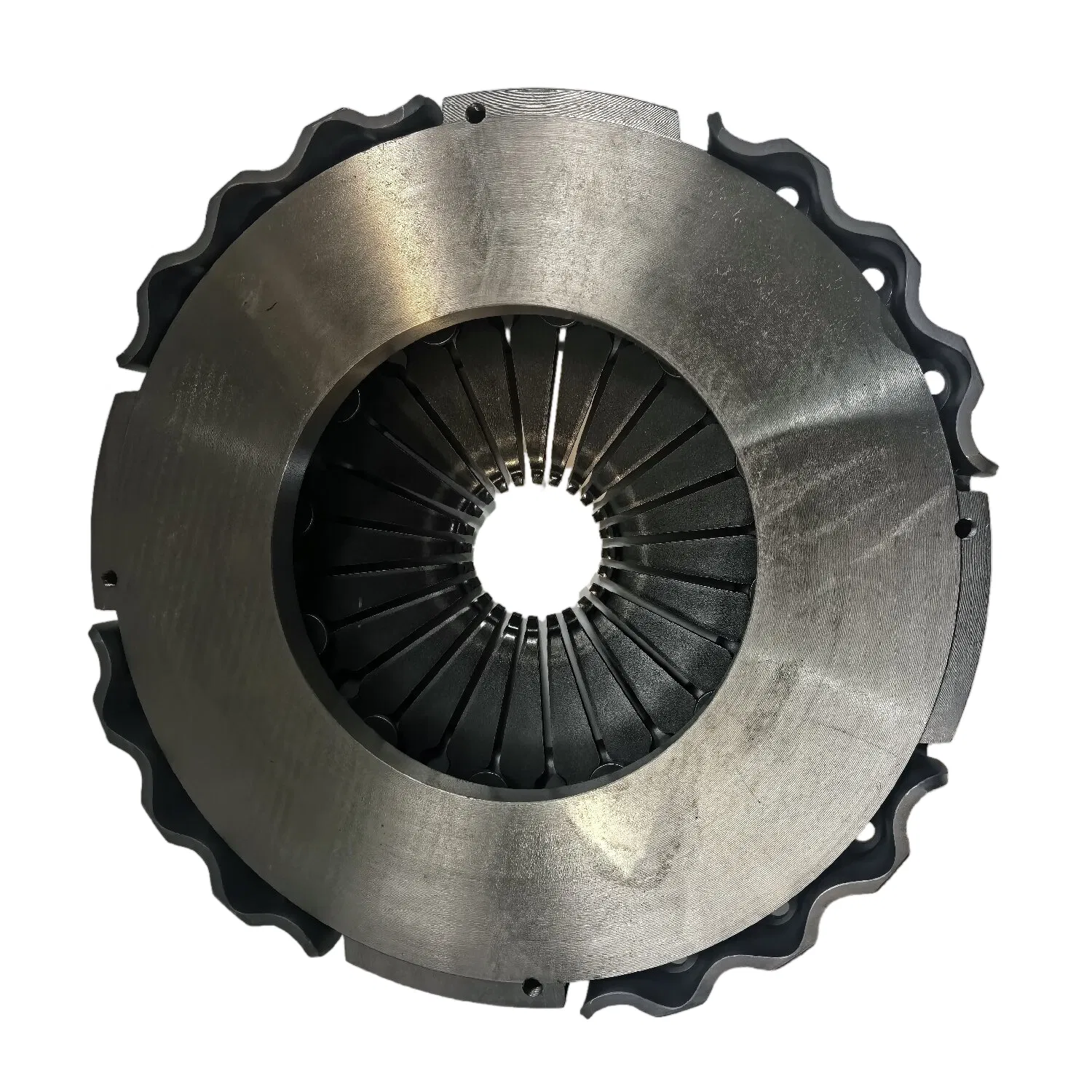

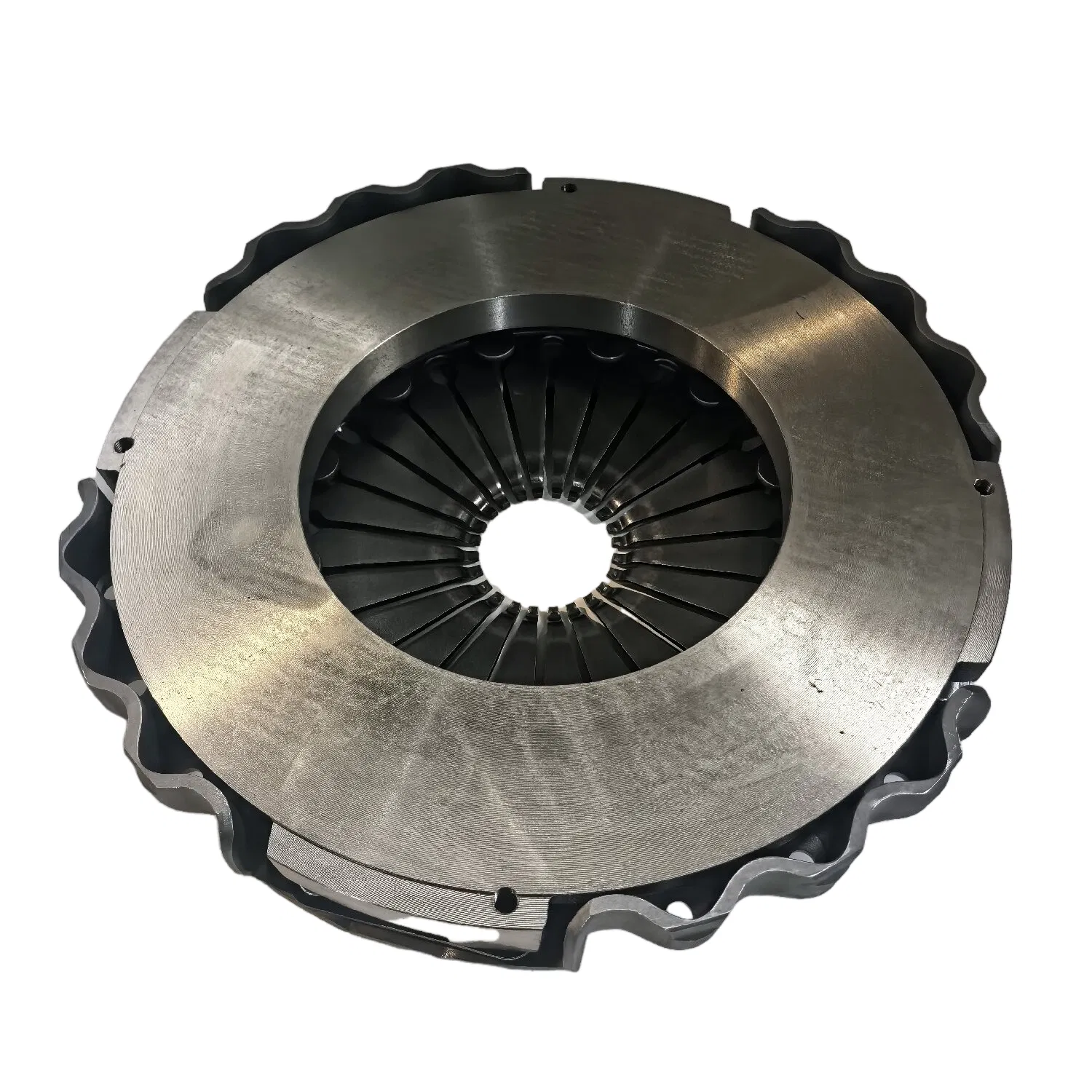

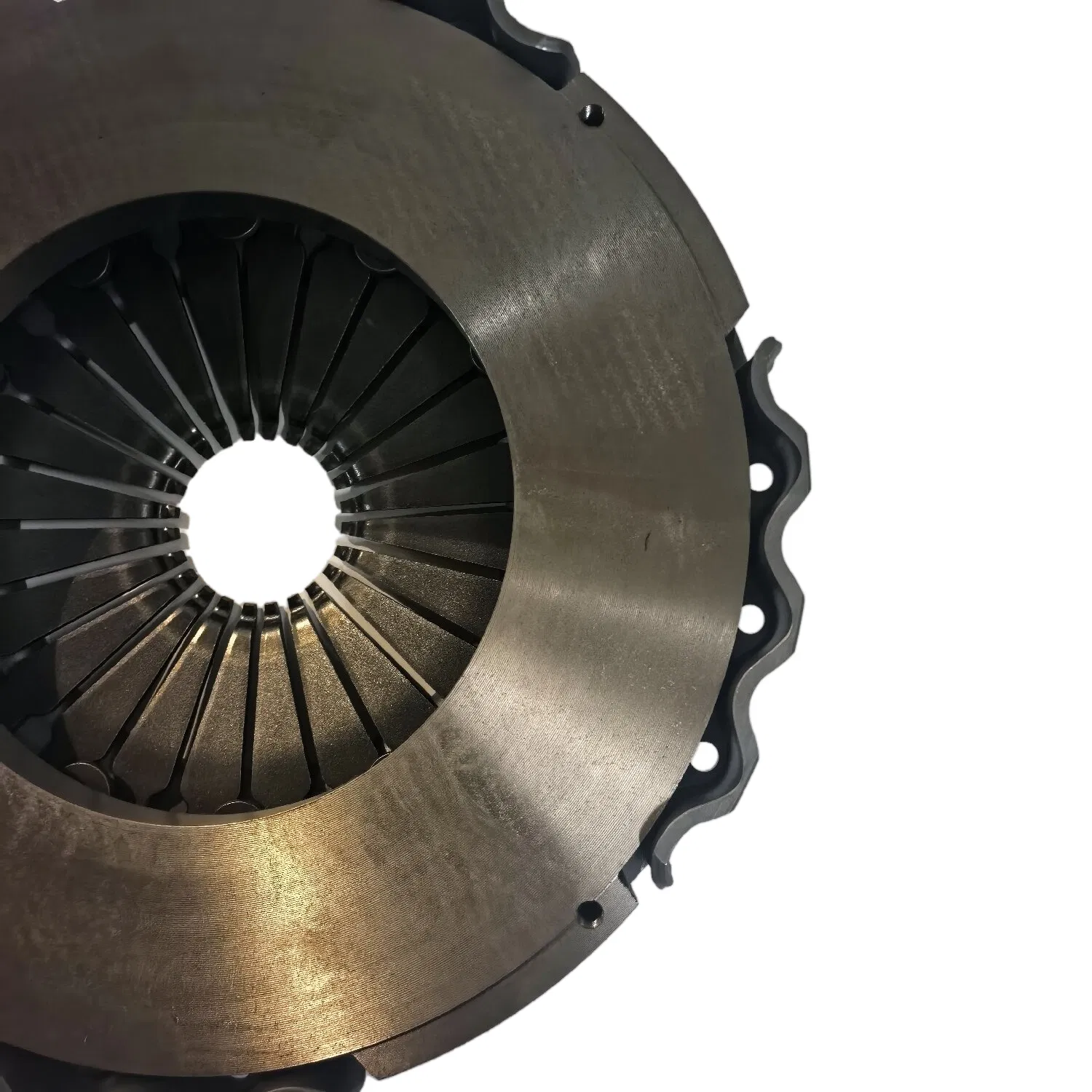

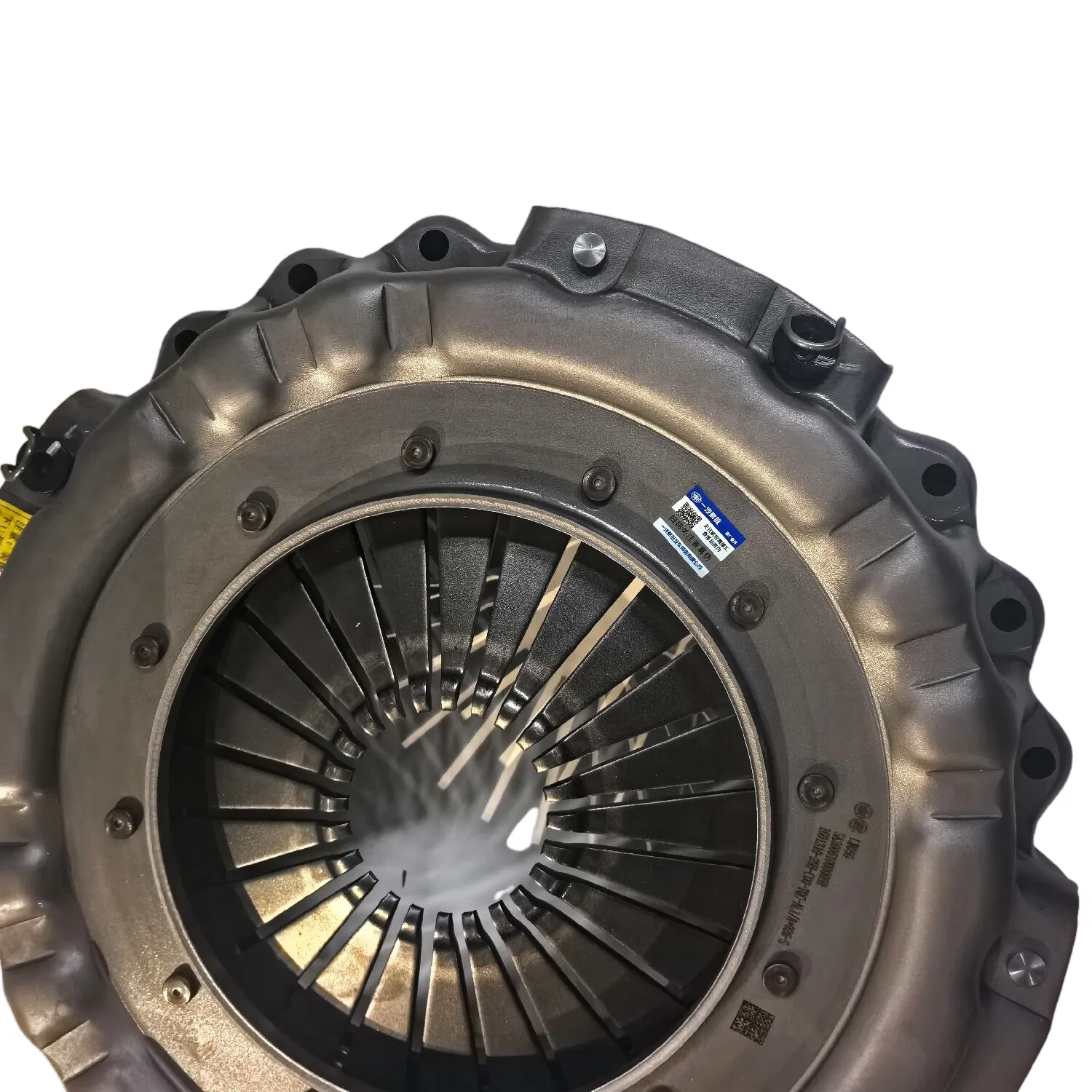

This 395mm assembly matches engines up to 1000 Nm, ensuring robust power. It features 18100±1200 N clamping force and a maximum 4500N release force for smooth operation. It offers a 3mm wear allowance and an 11-13mm release stroke. Perfect fit: φ435mm spigot, φ440mm outer, φ228mm ID x φ395mm OD pressure plate, ensuring reliable integration.
| Parameter Item | Specification Data |
|---|---|
| Matching Engine Torque | 1000Nm |
| Clamping Force | (18100±1200)N |
| Release Force | 4500N max |
| Release Finger Working Diameter | φ78mm |
| Installation Height | 70mm |
| Release Stroke | (11-13)mm |
| Wear Amount | 3mm |
| Spigot Diameter | φ435mm |
| Pressure Plate Inner Diameter | φ395mm |
| Pressure Plate Outer Diameter | φ228mm |
| Maximum Outer Diameter | φ440mm |
| Reference Code | 1601310-29H-C00/C |

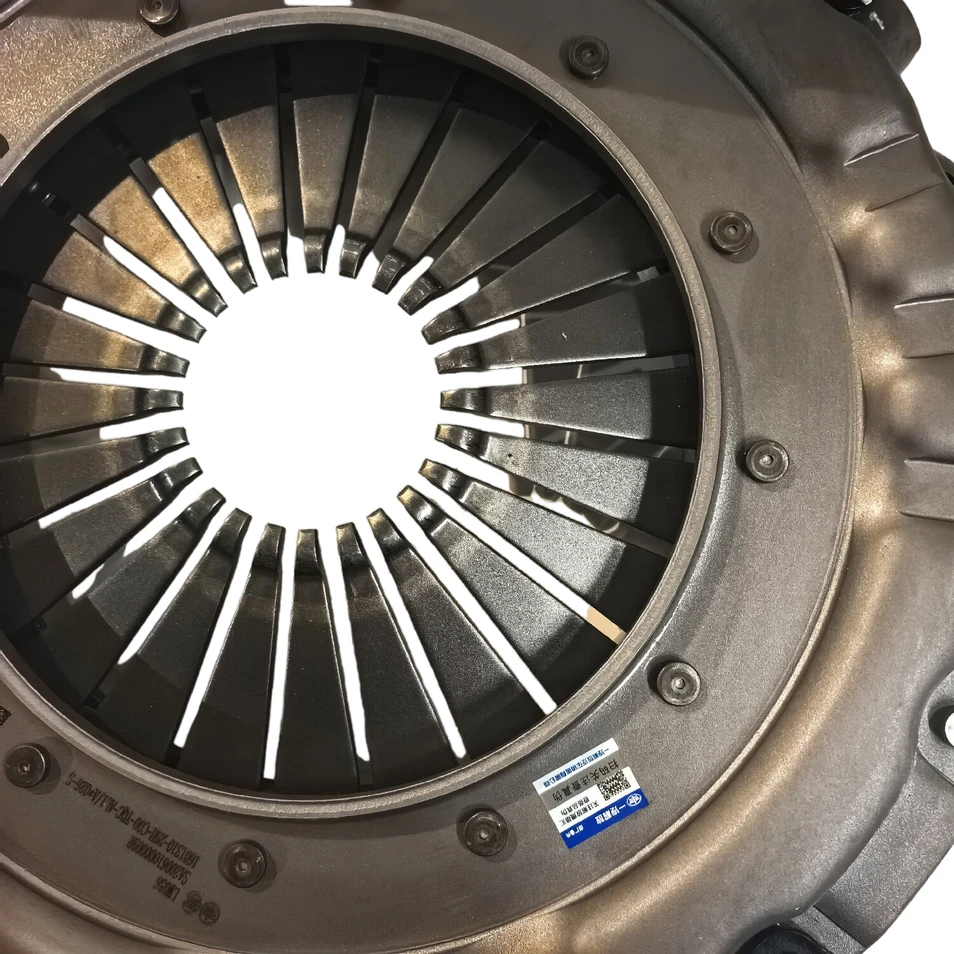

Professional Diaphragm Spring: Utilizing high-quality 50CrV4/51CrV4 steel with advanced heat treatment. High durability, withstanding 2 million cycles of high-temp disengagement tests.
Cast Iron Pressure Plate: HT250 cast iron with rib structure for larger heat capacity, reducing clutch ablation risk.
Clutch Cover: SPHE cover with lower deflection coefficient and increased lever ratio for stronger clamping with lower release force.

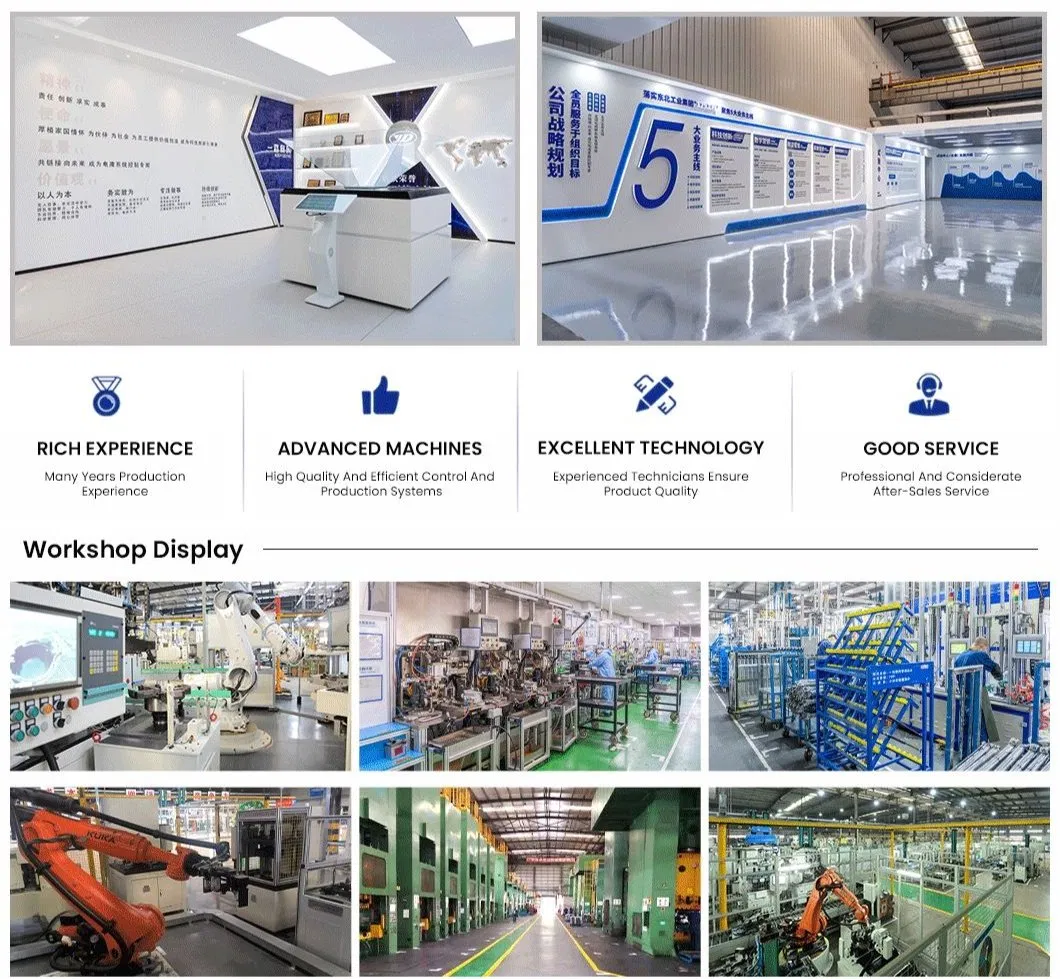

Our facility serves as a national tech center with over 45 invention patents and 191 utility model patents. We utilize advanced 3D design, PLM, and MES data control along with simulation tools like MATLAB, ANSYS, and ABAQUS. Our CNAS national testing lab features 106 sets of equipment for vehicle pedal comfort and NVH analysis.
